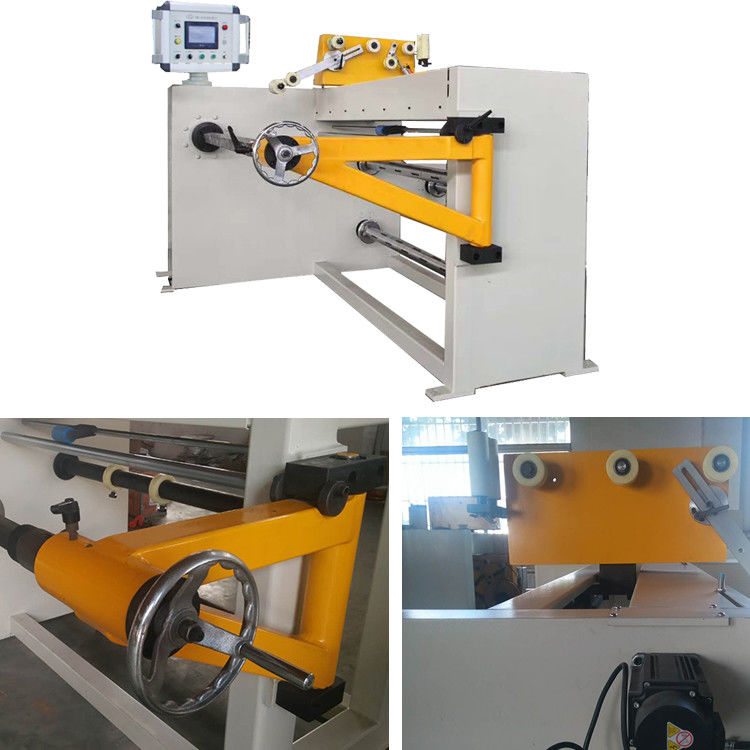

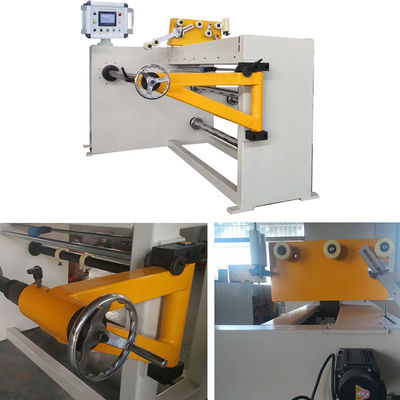

Automatic Copper Wire Coil Winding Machine For Making Transformer

Automatic Copper Wire Coil Winding Machine For Making Transformer

Automatic Copper Wire Coil Winding Machine For Making Transformer
Automatic Copper Wire Coil Winding Machine For Making Transformer

Large Image :  Automatic Copper Wire Coil Winding Machine For Making Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Automatic Coil Winding Machine Max. Winding Width: 1200mm
Winding Motor: 5.5kw Winding Speed: 0 ~ 80rpm
Servo Motor: 0.75kw Wire Guide: 1 Pc
Color: As Requested Warranty: 12 Months
High Light:

Automatic Coil Winding Machine 0.75kw

,

Automatic Copper Wire Coil Winding Machine

,

Transformer Copper Wire Coil Winder Machine

Copper Wire Coil Winding Machine Automatic Coil Winding Machine For Making Transformer





Description of automatic coil winding machine ZPX1200



A transformer coil winding machine is a specialized piece of equipment mainly used for winding coils in transformer manufacturing. The automatic coil winding machine is designed to automate and optimize the winding process, ensuring precise and efficient coil winding for transformers. The coil winding machine ZPX1200 can wind the coil with maximum height 1200mm. With PLC control system and HMI, the automatic coil winding machine features high automation, high precision and easy operation etc.





Features of automatic coil winding machine ZPX1200

  • slow starting
  • smooth running
  • customizable color
  • big power
  • high automation
  • 12 months warranty



Main Parameters of automatic coil winding machine ZPX1200



The following is the standard specifications of automatic coil winding machine ZPX1200, however, the machine can also be manufactured as requested.



Center Height From Floor: 900mm
Winding Square Shaft Size: 50x50x1500mm
Maximum Winding Width: 1200mm
Winding Power: 5.5kw
Winding Speed: 0 ~ 160 rpm
Regulation: stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.: Φ800mm
Maximum Capacity: 800kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Max. Numbers of Turns Preset: 9999.9
Counting Turn Range: 0 ~ 9999.9


Automatic Copper Wire Coil Winding Machine For Making Transformer 0
Fig 1: Automatic coil winding machine ZPX1200's front view

Automatic Copper Wire Coil Winding Machine For Making Transformer 1
Fig 2: Automatic coil winding macihne ZPX1200's side view

Automatic Copper Wire Coil Winding Machine For Making Transformer 2
Automatic Copper Wire Coil Winding Machine For Making Transformer 3
Automatic Copper Wire Coil Winding Machine For Making Transformer 4Automatic Copper Wire Coil Winding Machine For Making Transformer 5Automatic Copper Wire Coil Winding Machine For Making Transformer 6Automatic Copper Wire Coil Winding Machine For Making Transformer 7Automatic Copper Wire Coil Winding Machine For Making Transformer 8Automatic Copper Wire Coil Winding Machine For Making Transformer 9Automatic Copper Wire Coil Winding Machine For Making Transformer 10
