High Torque Programmable Automatic Coil Winding Machine For Making Transformer

High Torque Programmable Automatic Coil Winding Machine For Making Transformer

High Torque Programmable Automatic Coil Winding Machine For Making Transformer
High Torque Programmable Automatic Coil Winding Machine For Making Transformer

Large Image :  High Torque Programmable Automatic Coil Winding Machine For Making Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Coil Winding Machine Function: Winding Transformer Coil
Wire Type: Round Or Flat Wire Conductor: Cu Or Al Wire
Round Wire Diameter: 0.3 ~ 5.0mm Flat Wire Size: 5x12mm, Maximum
Motor Power: 7.5kw Rotating Speed: 60rpm
High Light:

Automatic Coil Winding Machine High Torque

,

0.3mm Automatic Coil Winding Machine

,

Transformer Making Coil Winder Machine

High Torque Programmable Automatic Coil Winding Machine For Making Transformer





Description of automatic coil winding machine ZPX1400



The automatic coil winding machine ZPX1400 is one of transformer coil winding machines, which is designed to wind various sizes of wires to make transformer coils and other similar products. The automatic coil winding machine offers high-speed and high-precision winding capabilities, ensuring consistent and accurate winding results. This kind of automatic coil winding machine can wind both copper wires and aluminium wires. With PLC control system, the automatic coil winding machine can guarantee high automation and easy operation. Slow starting, smooth running and high automation etc. are the automatic coil winding machine features.





Main features of automatic coil winding machine ZPX1400



  • slow starting
  • smooth running
  • full function
  • high automation
  • High torque
  • High precision



Technical parameters of automatic coil winding machine ZPX1400



Typical standard specifications of automatic coil winding machine ZPX1400 are shown below, however the machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 50x50x1700mm
Insulation Decoiler Quantity: 1 pc
Winding Power: 7.5Kw
Winding Speed: 0 ~ 60 Rpm
Speed Regulation: stepless speed regulation
Maximum Rectangular Wire Size: 5x14mm
Round Wire Diameter: Φ0.3 ~ 5.0mm
Maximum Wound Coil Height: 1400mm
Maximum Coil Weight: 1000kg
Counting Mode: 5-digit counting
Max. Turns Preset Number: 9999.9
Counting Range: 0 ~ 9999.9



High Torque Programmable Automatic Coil Winding Machine For Making Transformer 0

Fig 1: Automatic coil winding machine ZPX1400's front view



High Torque Programmable Automatic Coil Winding Machine For Making Transformer 1

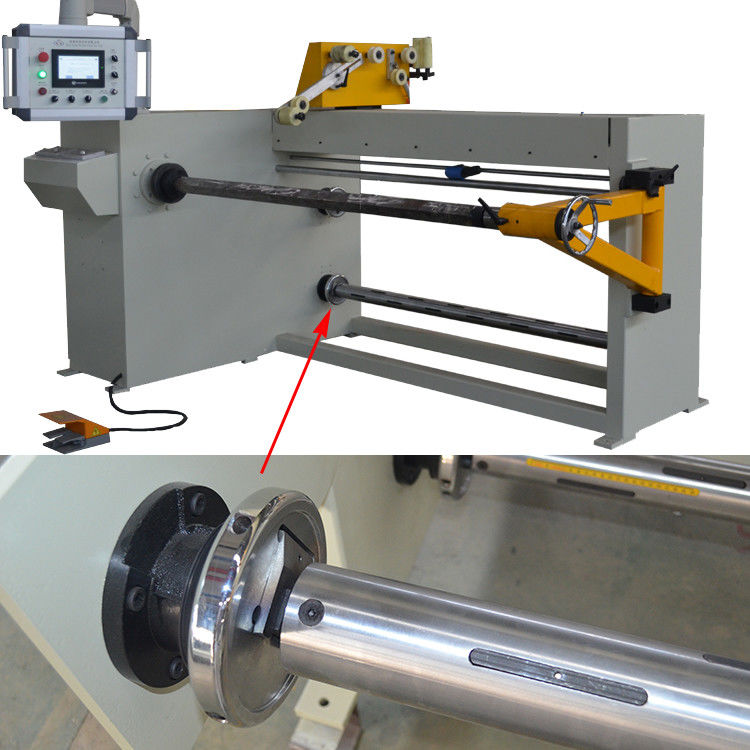

Fig 2: Automatic coil winding machine ZPX1400's insulation decoiler



High Torque Programmable Automatic Coil Winding Machine For Making Transformer 2High Torque Programmable Automatic Coil Winding Machine For Making Transformer 3High Torque Programmable Automatic Coil Winding Machine For Making Transformer 4High Torque Programmable Automatic Coil Winding Machine For Making Transformer 5High Torque Programmable Automatic Coil Winding Machine For Making Transformer 6High Torque Programmable Automatic Coil Winding Machine For Making Transformer 7High Torque Programmable Automatic Coil Winding Machine For Making Transformer 8High Torque Programmable Automatic Coil Winding Machine For Making Transformer 9
