| Name: | Tranformer Foil Winding Machine | Usage: | Winding Dry Type Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Winding Speed: | 0 ~ 16rpm | Driven Power: | 30kw |
| Machine Color: | Optional | Warranty: | 12 Months |
| High Light: | Cast Resin Dry Transformer Foil Winder,Transformer Foil Winding Machine 30kw,Pneumatic Control Transformer Foil Winding Machine |
||
Cast Resin Transformer Foil Winding Machine With 30kw Motor Driven
Introduction of transformer foil winding machine BRJ1600-2
Transformer foil winding machine BRJ1600-2 is a specialized piece of equipment used in electrical engineering and manufacturing processes. The transformer foil winding machine is designed to wind or coil conductive foils, typically made of copper or aluminum, onto various components such as transformers, inductors, or electromagnetic coils. With two sets of foil dereelers, two layers of conductor foil can be wound with this kind of transformer foil winding machine. The transformer foil winding machine is with two pneumatic expansible mandrel for putting insulation paper.The transformer foil winding machine is driven by a motor with power 30kw.
Features of transformer foil winding machine BRJ1600-2
Main parameters of transformer foil winding machine BRJ1600-2
The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.
| Foil Width: | 350 ~ 1,600mm |
| Maximum Finished Coil OD.: | 1,000mm |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Insulation Decoiler Number: | 2 pcs |
| Winding Power: | 30kw |
| Winding Speed: | 0 ~ 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 - 9999.9 |

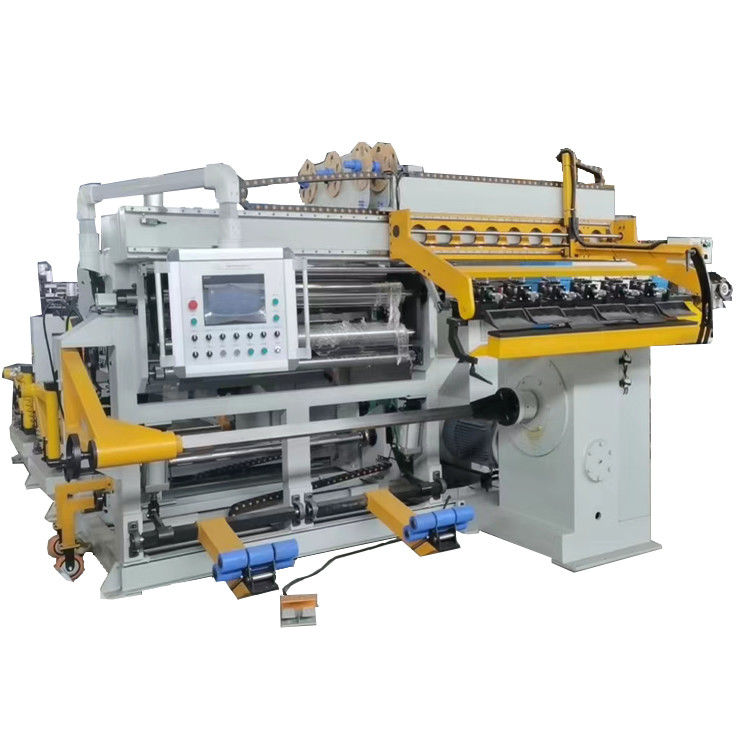

Fig 1: Transformer foil winding machine BRJ1600-2's front view
Fig 2: Transformer foil winding machine BRJ1600-2's back view
