Automatic Copper Foil Winding Machine Foil Max 1000mm Width 0.2 - 3.0mm Thickness

Automatic Copper Foil Winding Machine Foil Max 1000mm Width 0.2 - 3.0mm Thickness

Automatic Copper Foil Winding Machine Foil Max 1000mm Width 0.2 - 3.0mm Thickness
Automatic Copper Foil Winding Machine Foil Max 1000mm Width 0.2 - 3.0mm Thickness

Large Image :  Automatic Copper Foil Winding Machine Foil Max 1000mm Width 0.2 - 3.0mm Thickness Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ1000-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Copper Foil Winding Machine Function: Winding Foil Coil
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Foil Width: 200 - 1000mm Foil Decoiler: 2 Sets
Color: Optional Warranty: One Year
High Light:

3.0mm Copper Foil Winding Machine

,

Touch Screen Copper Foil Winding Machine

Copper Foil Winding Machine Wind Foil Max 1000mm Width 0.2-3.0mm Thickness





Description of copper foil winding machine BRJ1000-2



Copper foil winding machine BRJ1000-2 is one of special equipment for winding conductor foil, which is mainly for making cast resin transformer’s coils and other similar products. The foil thickness of the copper foil winding machine can wind is from 0.2 mm to 3.0mm and the maximum foil width is 1000mm. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers, which makes the winding machine can wind one or two layers of foil conductor and one or two layers of insulation paper. The control panel houses the user interface and control mechanisms for operating the machine. It allows operators to set various parameters such as winding speed, tension, and layering patterns. The copper foil winding machine features easy operation and so on.





Main components of copper foil winding machine BRJ1000-2

  • Main frame
  • Winding unit
  • Foil decoiler
  • Insulation decoiler
  • End-fill strip feeder
  • Foil deburring system
  • Edge alignment system
  • Automatic welding unit



Technical parameters of copper foil winding machine BRJ1000-2



Typical standard specifications of copper foil winding machine BRJ1000-2 are shown below, however, the winding machine can also be manufactured as requested.



Max. foil width: 1,000mm
Max. Rotating Diameter: 1,000mm
Wound Coil Shape: oval, circle and rectangular, etc
Conductor Material: Copper or Aluminum
Al Foil Thickness: 0.3 - 3.0 mm
Cu Foil Thickness: 0.2 - 2.0 mm
Conductor Material OD.: 1,000mm
Conductor Material ID.: 500mm
Foil Decoiler Diameter: adjustable range 400-520mm
Winding Power: 15KW
Winding Speed: 0 ~ 20 rpm
Welding: TIG
Cutting: Electric rolling shear
Insulation Decoiler Shaft: Expandable, pneumatic
End-fill Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 - 9999.9



Automatic Copper Foil Winding Machine Foil Max 1000mm Width 0.2 - 3.0mm Thickness 0

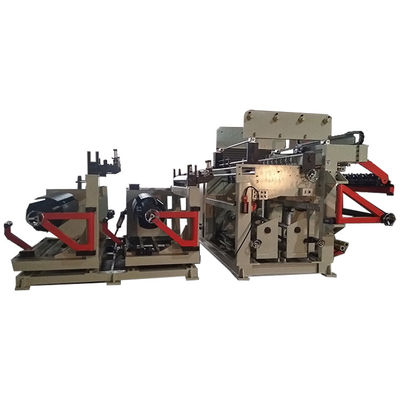

Fig 1: Copper foil winding machine BRJ1000-2's front view
