Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BWX1600-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Corrugated Fin Making Machine Sheet Width: 300 ~ 1600mm
Fin Height: 50 ~ 400mm Fin Pitch: 45 ~ 60mm
Fin Length: ≤2000mm Machine Color: As Requested
Oil Groove: 4mm Welding Machine: 2 Sets
High Light:

50mm Corrugated Fin Forming Machine

,

Transformer Oil Tank Making Equipment

,

Transformer Oil Tank Fin Making Machine

 Transformer Oil Tank Making Equipment Corrugated Fin Forming Machine





Description of corrugated fin forming machine BWX1600-400



Corrugated fin forming machine BWX1600-400 is a special equipment for making corrugated fins. The corrugated fin forming machine is a specialized piece of equipment used in the manufacturing of heat exchangers, specifically for the production of corrugated fins that are used to enhance heat transfer efficiency. These fins are commonly found in air coolers, radiators, and other heat exchanger applications.This kind of corrugated fins can be used to make transformer oil tank after being welded together. The full set of corrugated fins forming machine is composed of fin folding machine, corrugated fin welder, hydraulic decoiler and industrial oil cooler. The corrugated fin forming machine features high automation, easy operation and so on. The corrugated fin forming machine features easy operation, smooth running and so on.





Main components of corrugated fin forming machine BWX1600-400



1. Corrugated fin forming machine

2. Welding machine

3. Decoiler

4. Oil cooler



Quick details of corrugated fin forming machine BWX1600-400



  • Corrugated fin forming machine
  • Steel plate width 300 ~ 1600mm
  • Steel plate thickness 0.5 ~ 1.75mm
  • One year warranty



Main parameters of corrugated fin forming machine BWX1600-400



Typical standard specifications of corrugated fin forming machine BWX1600-400 are shown below, however, the fin forming machine can also be manufactured as requested.



Steel Plate Width: 300 ~ 1600mm
Steel Plate Thickness: 0.5 ~ 1.75mm
Corrugated Fin Height: 50 ~ 400mm
Corrugated Fin Pitch: 45 ~ 60mm
Corrugated Fin Length 2000mm, maximum
Fin Gap (oil groove): 4mm
Corrugated Fin Front Section Length: ≥30mm
Corrugated Fin Back Section Length: ≥30mm
Molding speed: 3 ~ 4 fins/min
Total Weight: 16000KG
Floor Space: 9m x 7m
Total Motor Power: 32kw



Corrugated Fin Forming Machine Transformer Oil Tank Making Equipment 0

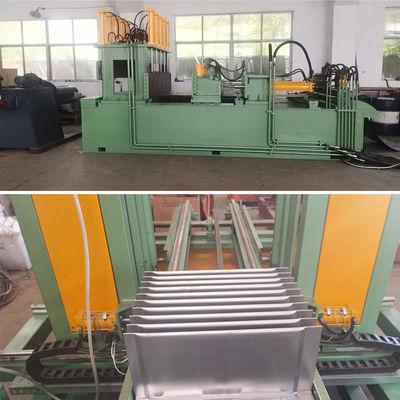

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit



Corrugated Fin Forming Machine Transformer Oil Tank Making Equipment 1

Fig 2: Corrugated fin forming machine BWX1600-400's welding machine



Corrugated Fin Forming Machine Transformer Oil Tank Making Equipment 2Corrugated Fin Forming Machine Transformer Oil Tank Making Equipment 3Corrugated Fin Forming Machine Transformer Oil Tank Making Equipment 4

Corrugated Fin Forming Machine Transformer Oil Tank Making Equipment 5Corrugated Fin Forming Machine Transformer Oil Tank Making Equipment 6
