Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder

Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder

Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder
Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder

Large Image :  Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product: Transformer Coil Winding Machine Usage: Winding Transformer Coil
Flat Wire: 5x12mm Round Wire: Ø0.3 - 5.0mm
Machine Color: Customized Warranty: 12 Months
Winding Speed: 0 ~ 200rpm Winding Width: 250mm, Maximum
High Light:

Horizontal Oil Immersed Transformer Coil Winder

,

Automatic Horizontal Wire Winder

,

200rpm Transformer Coil Winder

Automatic Horizontal Wire Winder Oil Immersed Transformer Coil Winding Machine





Description of transformer coil winding machine ZPX250



Automatic transformer coil winding machine ZPX250 is one kind of wire coil winders. The transformer coil winding machine is for winding oil immersed transformer coils and other similar products. In the transformer coil winding machine, one 2.2kw motor provides enough torque to drive the winding shaft. With one 750w servo motor, the wire guide can move precisely. The transformer coil winding machine is provided with main winding motor, servo motor, VFD, and so on. With the control system based on PLC, the transformer coil winding machine can run automatically as per the preset parameters. The transformer coil winding machine features easy operation, high automatic and so on.





Quick detail of transformer coil winding machine ZPX250

  • Maximum winding width 250mm
  • Center height 900mm
  • Winding power 2.2kw
  • Maximum winding speed 200rpm
  • Machine’s color can be customized
  • Warranty period 12 months



Technical parameters of transformer coil winding machine ZPX250



Typical standard specifications of transformer coil winding machine ZPX250 are shown below, however, the transformer coil winding machine can also be manufactured as requested.

Center Height: 900mm
Tailstock: Live center
Winding Power: 2.2kw
Rotating Speed: 0 ~ 150 rpm
Speed Regulation: Various stepless
Control System: Based on PLC
Round Wire: Ø0.3 ~ 5.0mm
Max. Flat Wire: 5x12mm
Max Winding Width: 250mm
Max Rotation Diameter: Ø400mm
Automatic Wire Laying Function: Min. Spread Pitch: 0.01mm
Basic Function: 5-digit counting,
Counting Range: 0 ~ 9999.9
Machine Dimension(LxWxH): 1200x900x1500mm



Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 0

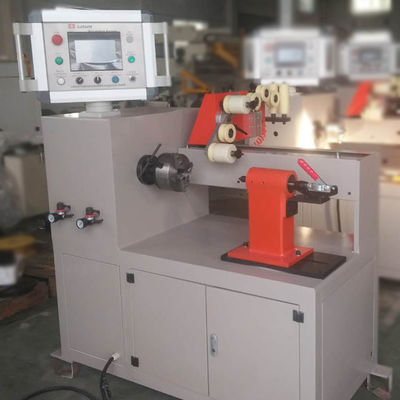

Fig 1: Automatic coil winding machine ZPX250's full view

Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 1
Fig 2: Automatic coil winding machine ZPX250's wire guide

Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 2Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 3Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 4Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 5Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 6Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 7Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 8Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 9Oil Immersed Transformer Coil Winding Machine Automatic Horizontal Wire Winder 10
