Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Foil Winding Machine | Usage: | Making Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Max. Foil Width: | 1200mm | Color: | As Requested |
| Winding Motor: | 15kw | Winding Speed: | 0 ~ 18rpm |
| High Light: | Transformer Coil Copper Sheet Winder,Two Layers Copper Sheet Winder,1200mm Transformer Foil Winding Machine |
||

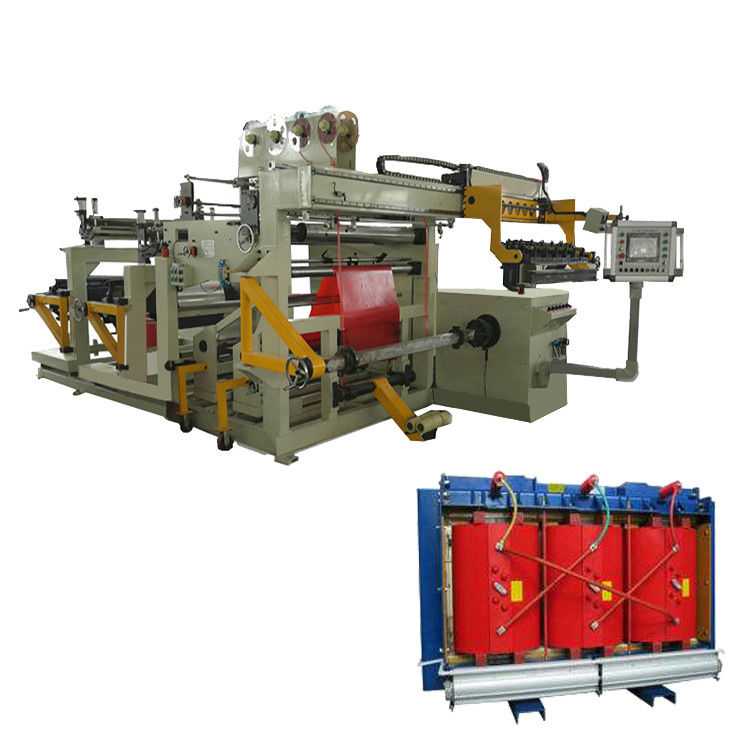

Two Layers Copper Sheet Winder Dry Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1200-2
Transformer foil winding machine is a special equipment designed for winding transformer coils with copper or aluminium foil conductors. Transformer foil winding machine adopting different automatic technologies to improve the process. This kind of transformer foil winding machine can wind both one or two layers of aluminium foil or copper foil and one or two layers of insulation paper. With PLC control system and HMI, the transformer foil winding machine can be operated easily.
Main components of transformer foil winding machine BRJ1200-2
Technical parameters of transformer foil winding machine BRJ1200-2
Typical standard specifications of transformer foil winding machine BRJ1200-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,200mm |
| Max. Finished Coil OD: | Φ1,000mm |
| Min. Finished Coil ID: | Φ130mm |
| Finished Coil Shape: | oval, circle and rectangular, etc |
| Conductor Foil Material: | Copper or Aluminum |
| Foil Thickness Min. and Max. (Aluminum): | 0.3 ~ 3.0 mm |
| Foil Thickness Min. and Max. (Copper): | 0.2 ~ 2.0 mm |
| Conductor Foil Material OD.: | Φ1,000mm |
| Conductor Foil Material ID.: | Φ500mm |
| Conductor Decoiler Diameter: | Φ400 ~ 520mm |
| Winding Power: | 15KW |
| Winding speed: | 0 ~ 20 rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |
FIG 1: Transfomer foil winding machine's side view
Fig 2: Transformer foil winding machine BRJ1200-2's back view
