Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine

Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine

Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine
Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine

Large Image :  Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Motor Power: 4kw
Speed: 0 ~ 160rpm Conductor Type: Flat Or Round Wire
Control System: PLC Display Mode: Touch Screen
Tension Control: Pneumatic Winding Direction: Forward/Reverse
Winding Method: Single/Double/Triple Wire Diameter: 0.3~ 5.0mm
High Light:

PLC Control Oil Transformer Winding Machine

,

Automatic Wire Coil Winder

,

Round Wire Coil Winder

Factory Price PLC Control Wire Coil Winder Oil Transformer Winding Machine





Description of automatic coil winding machine ZPX800



Automatic coil winding machine ZPX800 is an special winding equipment and manufacturing machinery for making transformer coils and other similar products. The automatic coil winding machine can wind copper wire and aluminium wire. The maximum height of coil the automatic coil winding machine can wind is 800mm. One servo motor is adopted to drive the wire guide, which guarantees the wire guide to move precisely. The automatic coil winding machine is provided with a touch screen, and all parameters can be entered through the screen, which make the winding be operated easily.





Features of automatic coil winding machine ZPX800



easy operation, slow starting, smooth running, full function, high automation, etc.





Main parameters of automatic coil winding machine ZPX800



The typical standard specifications of automatic coil winding machine ZPX800 is as following, however, the coil winding machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 40x40x1100mm
Maximum Winding Width: 800mm
Winding Motor: 4kw
Winding Speed: 0 ~ 160 rpm
Speed Regulation: stepless
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Ø0.3mm ~ Ø5.0mm
Maximum Wound Coil OD.: 800mm
Maximum Capacity: 700kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Maximum Turns Preset: 9999.9
Counting Range: 0 ~ 9999.9



Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 0

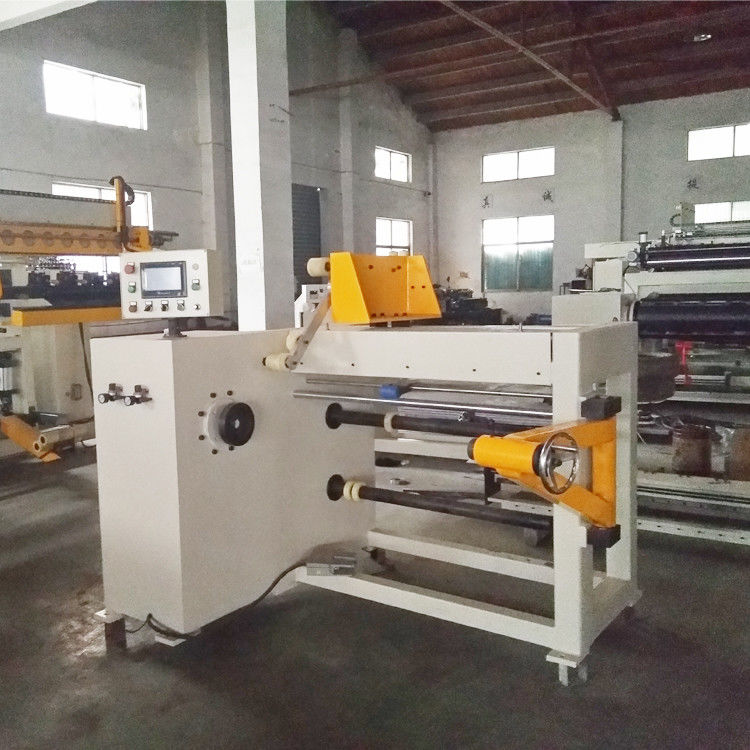

Fig 1: Automatic coil winding machine ZPX800's front view



Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 1

Fig 2: Automatic coil winding machine ZPX800's wire guide



Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 2Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 3Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 4Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 5Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 6Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 7Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 8Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 9Automatic PLC Control Wire Coil Winder Oil Transformer Winding Machine 10
