| Product Name: | Tranformer Foil Winding Machine | Function: | Winding Dry Type Transformer Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Winding Speed: | 0 ~ 16rpm | Motor Power: | 30kw |
| Color: | Optional | Warranty: | 12 Months |
| Highlight: | Transformer Foil Winding Machine 350mm,Automatic Dry Type Transformer Foil Winder,2.0mm Copper Foil Winder |
||
Automatic Copper Foil Winder Dry Type Transformer Foil Winding Machine
Introduction of transformer foil winding machine BRJ1600-2
Transformer foil winding machine BRJ1600-2 is a specialized equipment for winding copper or aluminium foil to make dry type transformer coils. With two sets of foil decoilers, the transformer foil winding machine can wind one or two layers of conductor foil. The transformer foil winding machine is with two pneumatic expansible mandrel for putting insulation paper, therefore, the machine can also wind one or two layers of insulation paper.The transformer foil winding machine is driven by a motor with power 30kw.
Features of transformer foil winding machine BRJ1600-2
Main parameters of transformer foil winding machine BRJ1600-2
The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.
| Foil Width: | 350 ~ 1,600mm |
| Maximum Finished Coil OD.: | Ø1,000mm |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 sets |
| Insulation Decoiler Number: | 2 sets |
| Winding Power: | 30kw |
| Winding Speed: | 0 ~ 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Range: | 0 - 9999.9 |

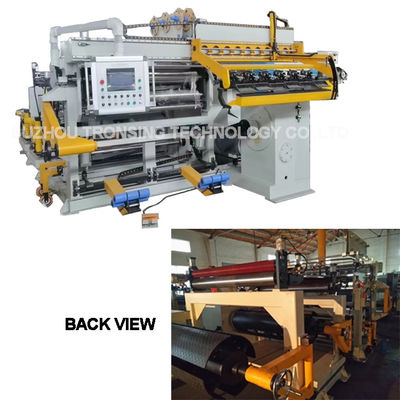

Fig 1: Transformer foil winding machine BRJ1600-2's front view
Fig 2: Transformer foil winding machine BRJ1600-2's back view
