Description of copper foil winding machine BRJ600



Copper foil winding machine BRJ600 is a special foil winder, which is mainly used to wind copper foil or aluminium foil to make low voltage cast resin transformer coils and other similar products. The copper foil winding machine is with one set of foil decoiler and can wind one layer of copper foil or aluminium foil. The copper foil winding machine is provided with two insulation decoilers and can wind one or two layers of insulation paper. With TIG welding unit, the copper foil winding machine can weld foil with bus bar together. The color of the copper foil winding machine can be customized. With PLC and HMI, the copper foil winding machine can be operated easily.





Quick detail of copper foil winding machine BRJ600

  • Maximum 600mm foil width
  • Winding both copper foil and aluminium foil
  • Foil conductor ID 500mm, OD 1000mm maximum
  • TIG welding
  • Pressing roller
  • Customized color



Technical Parameters of copper foil winding machine BRJ600



Typical standard specifications of copper foil winding machine BRJ600 are shown below, however, the copper foil winding machine can also be manufactured as requested.

Foil width: 200 ~ 600mm
Max. Finished Coil OD: Ø800mm
Finished Coil Shape: oval, circle and rectangular,etc.
Conductor Foil Material OD.: Ø1,000mm, maximum
Conductor Foil Material ID.: Ø500mm
Foil Decoiler Number: 1 pc
Foil Decoiler Length: 650mm
Winding Shaft Size: 80×80×950 mm
Welding Mode: TIG
Insulation Decoiler Number: 2 setes
Insulation Decoiler Shaft: Expandable (pneumatic open/close action)
End-fill Strip Feeder: 6 pcs
Edge Alignment System: Photoelectric sensing
Control System: PLC
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 - 9999.9


Low Voltage Transformer Copper Foil Winding Machine Automatic Foil Winder 0

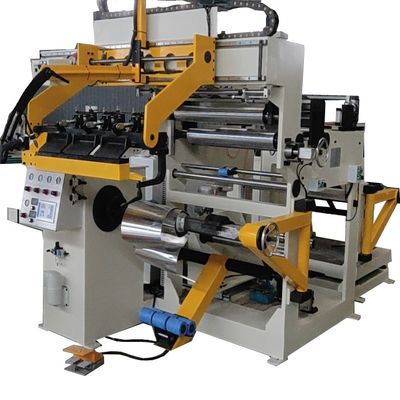

Fig 1: Copper foil winding machine BRJ600's front view
