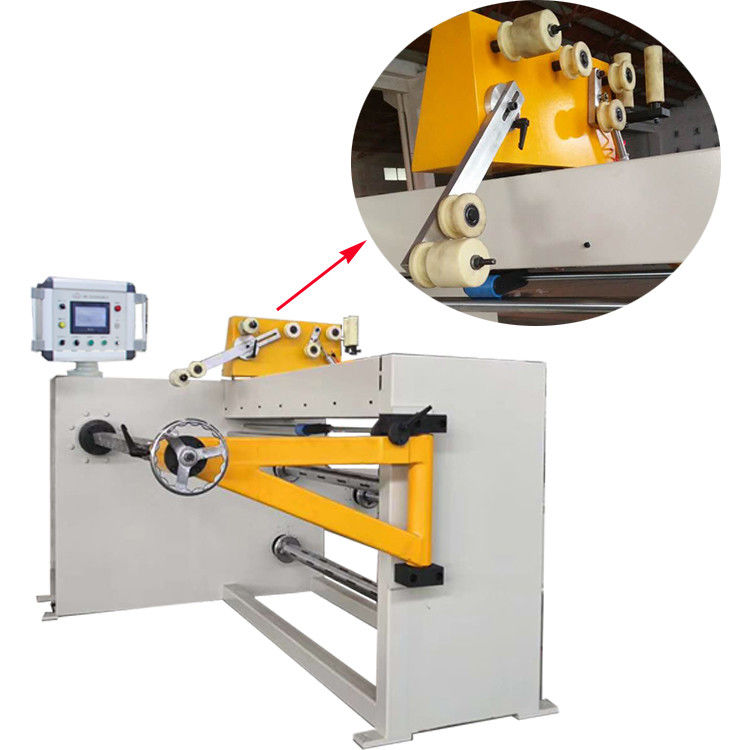

PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder

PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder

PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder
PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder

Large Image :  PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Automatic Coil Winding Machine Max. Winding Width: 1200mm
Winding Motor Power: 5.5kw Rotating Speed: 0 ~ 80rpm
Servo Motor: 0.75kw Wire Guide: 1 Pc
Color: As Requested Warranty: 12 Months
High Light:

Copper Wire Coil Winder

,

PLC Control Coil Winding Machine

,

Automatic Coil Winding Machine 1200mm

PLC Control Copper Wire Coil Winder Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX1200



Transformer coil winding machine is a specialized winding equipment for winding coils, these wound coils can be used in transformers or other similar products. The automatic coil winding machine can wind copper or aluminium wires. The coil winding machine ZPX1200 can wind the coil with maximum height 1200mm. With PLC control system and HMI, the automatic coil winding machine can be operated easily.





Features of automatic coil winding machine ZPX1200

  • slow starting
  • smooth running
  • customizable color
  • big power
  • high automation
  • 12 months warranty



Main Parameters of automatic coil winding machine ZPX1200



The following is the standard specifications of automatic coil winding machine ZPX1200, however, the machine can also be manufactured as requested.

Center Height From Floor: 900mm
Winding Square Shaft Size: 50x50x1500mm
Maximum Winding Width: 1200mm
Winding Power: 5.5kw
Winding Speed: 0 ~ 160 rpm
Regulation: stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Φ0.3mm ~ Φ5.0mm
Maximum wound Coil OD.: Φ800mm
Maximum Capacity: 800kg
Minimum Spread Pitch: 0.01mm
Counting Mode: 5-digit counting
Max. Numbers of Turns Preset: 9999.9
Counting Turn Range: 0 ~ 9999.9


PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 0
Fig 1: Automatic coil winding machine ZPX1200's front view

PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 1
Fig 2: Automatic coil winding macihne ZPX1200's side view

PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 2
PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 3
PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 4PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 5PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 6PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 7PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 8PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 9PLC Control Automatic Coil Winding Machine Copper Wire Coil Winder 10
