Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder

Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder

Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder
Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder

Large Image :  Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Coil Winding Machine Function: Winding Wire Coil
Wire Type: Round Or Flat Wires Conductor: Cu Or Al Wires
Round Wire Size: Φ0.3 ~ 5.0mm Max Flat Wire: 5x12mm
Power: 7.5kw Winding Speed: 60rpm
High Light:

Automatic Coil Winding Machine 60rpm

,

Automatic Transformer Wire Coil Winder

,

Programmable Automatic Coil Winding Machine

Transformer Wire Coil Winder Programmable Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX1400



Automatic coil winding machine ZPX1400 is a professional transformer coil winding machine, which is mainly used to wind different sizes of wires. The wound coils can be used in transformers and other similar products. The automatic coil winding machine can wind both copper wires and aluminium wires. The automatic coil winding machine can also wind round and flaat wires. The automatic coil winding machine's control system is based on PLC, which can guarantee high automation and easy operation. The automatic coil winding machine features slow starting, smooth running and high automation etc.





Main features of automatic coil winding machine ZPX1400

  • slow starting
  • smooth running
  • full function
  • high automation
  • High torque
  • High precision



Technical parameters of automatic coil winding machine ZPX1400



Typical standard specifications of automatic coil winding machine ZPX1400 are shown below, however the machine can also be manufactured as requested.

Center Height: 900mm
Winding Shaft Size: 50x50x1700mm
Insulation Decoiler Quantity: 1 pc
Winding Power: 7.5Kw
Winding Speed: 0 ~ 60 Rpm
Speed Regulation: stepless speed regulation
Maximum Rectangular Wire Size: 5x14mm
Round Wire Diameter: Φ0.3 ~ 5.0mm
Maximum Wound Coil Height: 1400mm
Maximum Coil Weight: 1000kg
Counting Mode: 5-digit counting
Max. Turns Preset Number: 9999.9
Counting Range: 0 ~ 9999.9



Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 0

Fig 1: Automatic coil winding machine ZPX1400's front view



Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 1

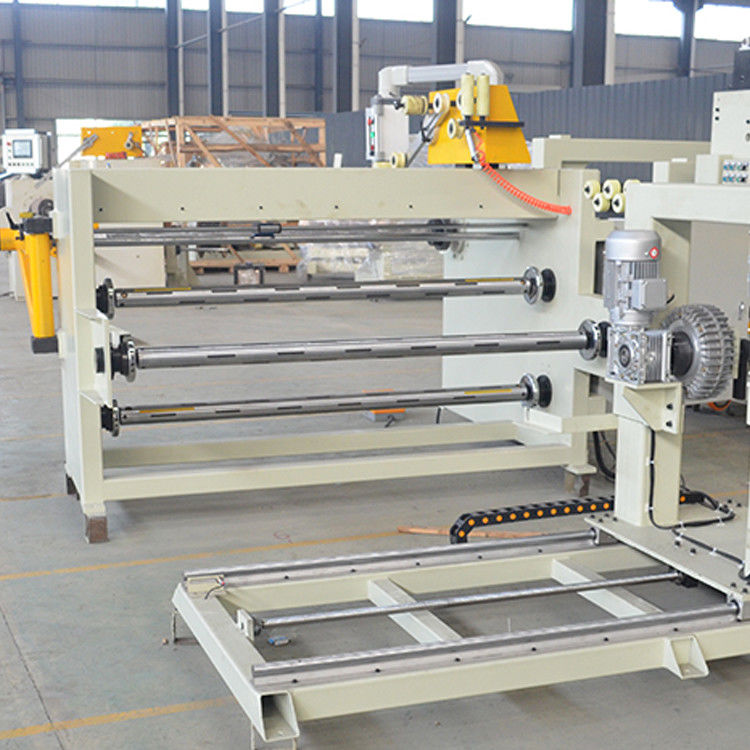

Fig 2: Automatic coil winding machine ZPX1400's insulation decoiler



Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 2Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 3Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 4Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 5Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 6Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 7Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 8Programmable Automatic Coil Winding Machine Transformer Wire Coil Winder 9
