Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder

Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder

Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder
Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder

Large Image :  Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD7000 ~ 15000 per set
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Machine Name: Transformer Coil Winding Machine Usage: Winding Wire Coil
Conductor Material: Copper Or Aluminium Wire Wire Type: Flat Wire Or Round Wire
HMI: Touch Screen Material: Steel
Winding Power: 5.5KW Winding Speed: 0 ~ 160RPM
Warranty Period: 12 Months Winding Mode: Manual/Automatic
High Light:

Automatic Transformer Coil Winding Machine 5.5KW

,

Automatic Transformer Coil Wire Winder

,

Oil Immersed Transformer Coil Winder Machine

Automatic Wire Winder Oil Immersed Transformer Coil Winding Machine





Description of transformer coil winding machine ZPX1000



Transformer coil winding machine ZPX1000 is for winding copper wire or aluminium wire to make wire coils. These coils can be used to make transformers and other similar products. The transformer coil winding machine adopts automatic wire laying and tension technologies and is especially suitable for winding different shapes of coils. The transformer coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, tension adjustable pay-off unit, pneumatic system, PLC based control system, and servo motors, etc. The transformer coil winding machine features slow starting, smooth running, high automation, full functions, and strong driving force, etc.





Main components of transformer coil winding machine ZPX1000



1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system





Technical parameters of transformer coil winding machine ZPX1000



Typical standard specifications of transformer coil winding machine ZPX1000 are shown below, however the coil winding machine can also be manufactured as requested.

Center Height: 900mm
Shaft length: 1300mm
Max. Winding Width: 1000mm
Winding Power: 5.5Kw
Winding Speed: 0 ~ 160 rpm
Speed Regulation: stepless speed regulation
Max. Flat Wire Size: 5X12mm
Round Wire Diameter: Ø0.3 ~ 5.0mm
Max. Finished Coil OD.: Ø800mm
Max. Loading Capacity: 700kg
Automatic Wire Laying Function: Min. spread pitch 0.01mm
Counting Mode: 5-digit counting
Counting Range: 0 ~ 9999.9



Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 0

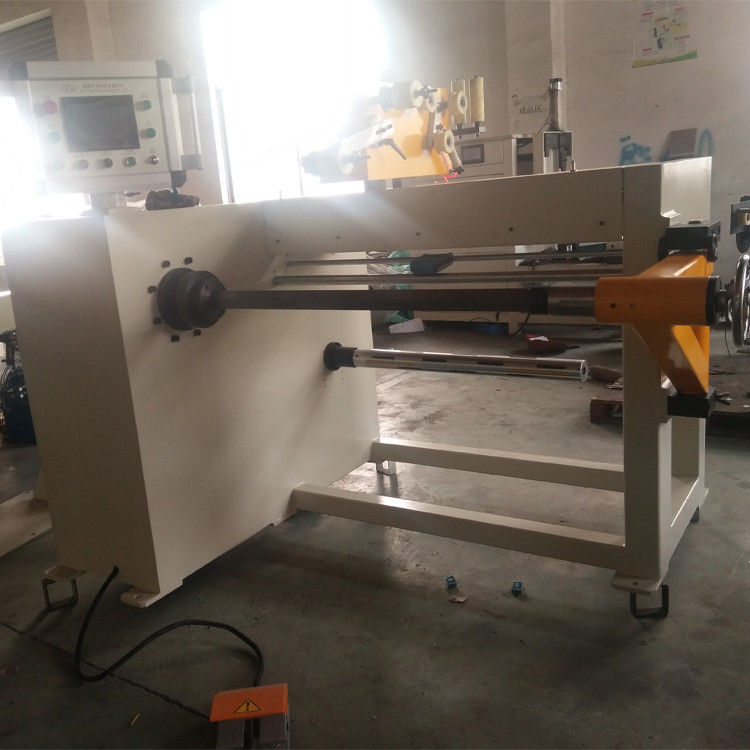

Fig 1: Transformer coil winding machine ZPX1000's front view



Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 1

Fig 2: Transformer coil winding machine ZPX1000's wire guide driven by sero motor



Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 2Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 3Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 4Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 5Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 6

Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 7Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 8Oil Immersed Transformer Coil Winding Machine Automatic Wire Winder 9
