High Voltage Transformer Coil Winder Automatic Coil Winding Machine

High Voltage Transformer Coil Winder Automatic Coil Winding Machine

High Voltage Transformer Coil Winder Automatic Coil Winding Machine
High Voltage Transformer Coil Winder Automatic Coil Winding Machine

Large Image :  High Voltage Transformer Coil Winder Automatic Coil Winding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Function: Winding Wire Coil
Wire Conductor: Aluminium Or Copper Wire Conductor Type: Round Or Flat Wire
Round Wire: ∅0.3 ~ 5.0mm Flat Wire Size: Maximum 5x12mm
Color: Customizable Warranty: 12 Months
High Light:

Customizable Transformer Coil Winder

,

High Voltage Transformer Coil Winder

,

High Voltage Automatic Coil Winding Machine

High Voltage Transformer Coil Winder Automatic Coil Winding Machine





Description of automatic coil winding machine ZPX400



Automatic coil winding machine ZPX400 is a professional winder equipment. The automatic coil winding machine is mainly used to winding copper wire or aluminium wire to make wire coils. This kind of coils wound with automatic coil winding machine can be used in transformers and other similar products. With PLC and a touch screen, the automatic coil winding machine can wind different size of coil automatically as per preset corresponding parameters. The automatic coil winding machine is provided with a wire guide and the maximum winding width is 400mm. The automatic coil winding machine features easy operation, high automation and so on.





Main features of automatic coil winding machine ZPX400

  • slow starting
  • smooth running
  • Big driving force
  • High reliability
  • Good accuracy
  • High automation



Main parameters of automatic coil winding machine ZPX400



Typical standard specifications of automatic coil winding machine ZPX400 are shown below, however the coil winding machine can also be manufactured as requested.

Center height: 900mm
Square Shaft Size: 40x40x700mm
Maximum Winding Width: 400mm
Rotating Speed: 0 ~ 200 rpm
Motor Power: 3kw
Maximum Flat Wire Size: 3X10mm
Round Wire Diameter: Ø0.3 ~ 4.0mm
Maximum Rotating OD.: Ø500mm
Maximum Capacity: 200kg
Counting: 5-digit counting
Counting Range: 0 ~ 9999.9



High Voltage Transformer Coil Winder Automatic Coil Winding Machine 0

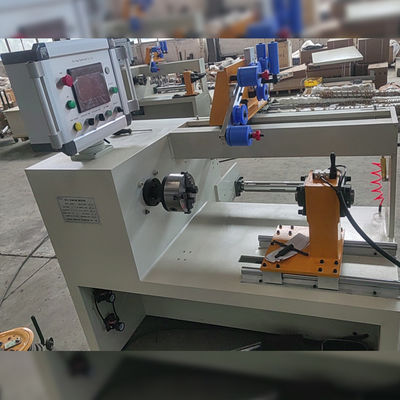

Fig 1: Automatic coil winding machine ZPX400's front view



High Voltage Transformer Coil Winder Automatic Coil Winding Machine 1

Fig 2: Automatic coil winding machine ZPX400's wire guide



High Voltage Transformer Coil Winder Automatic Coil Winding Machine 2High Voltage Transformer Coil Winder Automatic Coil Winding Machine 3High Voltage Transformer Coil Winder Automatic Coil Winding Machine 4High Voltage Transformer Coil Winder Automatic Coil Winding Machine 5High Voltage Transformer Coil Winder Automatic Coil Winding Machine 6High Voltage Transformer Coil Winder Automatic Coil Winding Machine 7High Voltage Transformer Coil Winder Automatic Coil Winding Machine 8High Voltage Transformer Coil Winder Automatic Coil Winding Machine 9High Voltage Transformer Coil Winder Automatic Coil Winding Machine 10
