| Name: | Transformer Foil Winding Machine | Function: | Winding Conductor Foil L |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 800mm | Color: | As Requested |
| Winding Power: | 15kw | Winding Speed: | 0 ~ 20rpm |
| High Light: | Cast Resin Transformer Foil Winding Machine,PLC Control Strip Winding Machine,Cast Resin Strip Winding Machine |
||
PLC Control Strip Winding Machine Cast Resin Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ800-2
Transformer foil winding machine BRJ800-2 is a special foil conductor winder to make make cast resin transformer coils. This kind of transformer foil winding machine is provided with 15kw motor to drive the winding shaft, which provide big torque to wind the foil with maximum width 800mm. The transformer foil winding machine adopts TIG welding process to weld foil and bus bar together. The transformer foil winding machine is provided with two foil decoilers and two insulation paper deciolers, which makes the foil winding machine wind one or two layers of copper or aluminium foil strip and one or two layers of insulation paper. With HMI and control system based on PLC, the transformer foil winding machine can be operated very easily.
Quick details of transformer foil winding machine BRJ800-2
1) Two foil decoilers
2) Two insulation paper decoilers
4) End-fill strip feeder
5) Cleaning system
6) Deburring system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ800-2
Typical standard specifications of transformer foil winding machine BRJ800-2 are shown below, however the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 800mm |
| Conductor Foil Material OD.: | Ø1,000mm |
| Conductor Foil Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Expansion Range: | Ø420 - 520mm |
| Winding Shaft Size: | 80×80×1150 mm |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 sets |
| Insulation Material OD.: | ≤Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Max. Width of insulation material: | 850mm |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |
Fig 1: Transformer foil winding machine BRJ800-2's front view

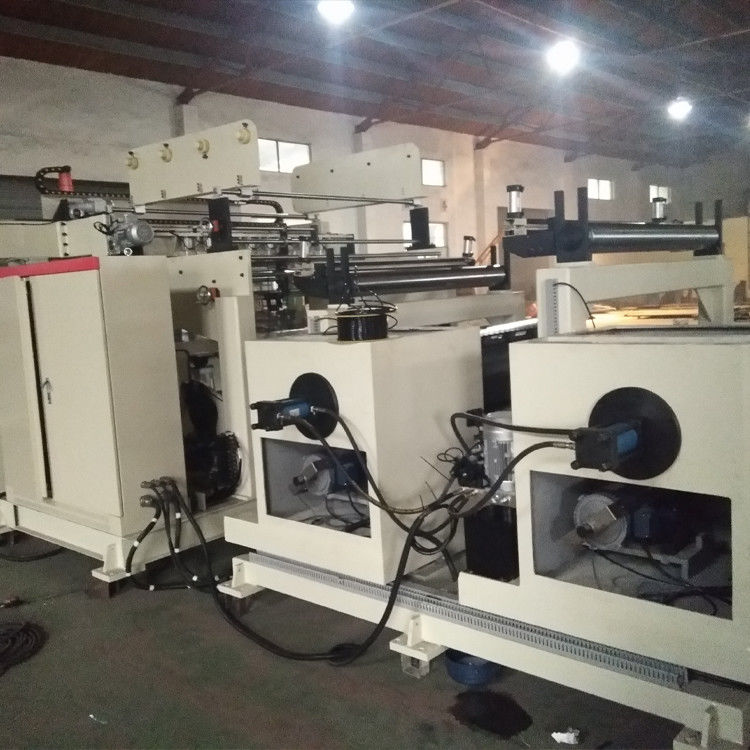

Fig 2: Transformer foil winding machine BRJ800-2's back view
