Oil Immersed Transformer Coil Winding Machine HV And LV Winder

Oil Immersed Transformer Coil Winding Machine HV And LV Winder

Oil Immersed Transformer Coil Winding Machine HV And LV Winder
Oil Immersed Transformer Coil Winding Machine HV And LV Winder

Large Image :  Oil Immersed Transformer Coil Winding Machine HV And LV Winder Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPX1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Coil Winding Machine Machine Color: Optinal
Function: Winding Wire Coil Control System: PLC
Conductor Material: Copper Or Aluminium Wire Wire Type: Flat Or Round Wire
Winding Power: 5.5kw Warranty: 1 Year
High Light:

Oil Immersed Transformer Coil Winding Machine

,

LV Transformer Coil Winding Machine

,

HV Transformer Coil Winding Machine

HV And LV Winder Oil Immersed Transformer Coil Winding Machine





Description of transformer coil winding machine ZPX1200



Transformer coil winding machine ZPX1200 is a professional heavy duty copper or aluminium wire winder and is mainly used to wind oil immersed transformer coils and other similar products. The transformer coil winding machine is with maximum winding width 1200mm. The transformer coil winding machine is provided with a wire guide to lay the wire. Servo motor is used to drive the wire guide, which guarantees the precision and the reliability. With HMI and PLC control system, the transformer coil winding machine can be operated very easily.





Main Components of transformer coil winding machine ZPX1200



1. Main frame

2. Winding unit

3. Automatic wire laying unit

4. Insulation decoiler

5. Electronic control system

6. Pneumatic system





Technical Parameters of transformer coil winding machine ZPX1200



Typical standard specifications of transformer coil winding machine ZPX1200 are shown below, however the coil winding machine can also be manufactured as requested.



Center Height: 900mm

Winding Shaft Length: 1500mm

Max. Winding Width: 1200mm

Winding Power: 5.5Kw

Winding Speed: 0 ~ 80 rpm

Max. Flat Wire Size: 5X12mm

Round Wire Diameter: Ø0.3 - 5.0mm

Max. Finished Coil OD.: Ø800mm

Max. Loading Capacity: 700kg

Counting Mode: 5-digit counting,

Counting Turn Range: 0 ~ 9999.9



Oil Immersed Transformer Coil Winding Machine HV And LV Winder 0

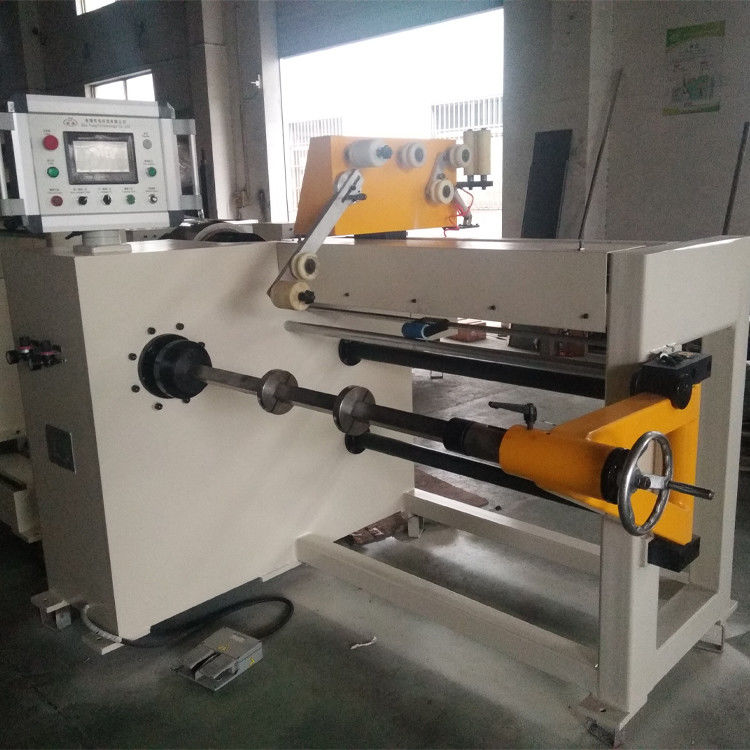

Fig 1: Transformer coil winding machine ZPX1000's front view
