LV Transformer Winder Automatic Copper Foil Winding Machine

LV Transformer Winder Automatic Copper Foil Winding Machine

LV Transformer Winder Automatic Copper Foil Winding Machine
LV Transformer Winder Automatic Copper Foil Winding Machine

Large Image :  LV Transformer Winder Automatic Copper Foil Winding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ1000-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Copper Foil Winding Machine Usage: Winding Foil Coil
Cu Foil Thickness: 0.2 - 2.0mm Al Foil Thickness: 0.3 - 3.0mm
Foil Width: 200 - 1000mm Foil Decoiler: 2 Sets
Color: Optional Warranty: One Year
High Light:

Automatic LV Transformer Winder

,

Automatic Copper Foil Winding Machine

,

Automatic Winding Machine

LV Transformer Winder Automatic Copper Foil Winding Machine





Description of copper foil winding machine BRJ1000-2



Copper foil winding machine BRJ1000-2 can wind conductor foil with maximum width 1000mm, the copper foil winding machine can handle:

  • Copper foil strip with thickness from 0.2 mm to 2.0mm
  • Aluminium foil strip with thickness 0.3mm to 3.0 mm
  • Max. foil width 1000mm
  • Two layers of foil
  • Two layers of insulation paper
  • Weld foil and bus bar together

The copper foil winding machine is provided with

  • two sets of foil decoilers
  • Two sets insulation paper decoilers
  • photoelectric sensors
  • pressing rollers
  • control system based on PLC
  • touch screen



Main components of copper foil winding machine BRJ1000-2

  • Main frame
  • Winding unit
  • Foil decoiler
  • Insulation decoiler
  • End-fill strip feeder
  • Foil deburring system
  • Edge alignment system
  • Automatic welding unit



Technical Parameters of copper foil winding machine BRJ1000-2



Typical standard specifications of BRJ1000-2 are shown below, however the foil winding machine can also be manufactured as requested.

Max. foil width: 1,000mm
Max. Finished Coil OD: Ø1,000mm
Conductor Material: Copper or Aluminum
Al Foil Thickness: 0.3 - 3.0 mm
Cu Foil Thickness: 0.2 - 2.0 mm
Conductor Material OD.: Ø1,000mm
Conductor Material ID.: Ø500mm
Foil Decoiler Diameter: adjustable range Ø480 - 520mm
Winding Power: 15KW
Welding: TIG
Cutting: Electric rolling shear
Insulation Decoiler Shaft: Expandable (pneumatic open/close action)
End-fill Strip Feeder: 8 pcs
Edge Alignment System: Photoelectric sensing
User Interface: 10inch (254mm) touch screen
Counting Turns Range: 0 - 9999.9



LV Transformer Winder Automatic Copper Foil Winding Machine 0

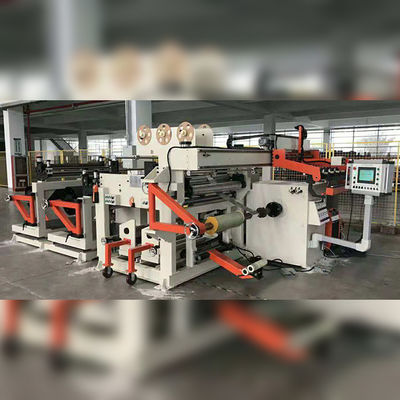

Fig 1: Copper foil winding machine BRJ1000-2's front view
