| Product Name: | Automatic Coil Winding Machine | Winding Width: | 1200mm, Maximum |
|---|---|---|---|
| Motor Power: | 5.5kw | Speed: | 0 ~ 80rpm |
| Servo Motor: | 0.75kw | Wire Guide: | 1 Pc |
| Color: | As Requested | Warranty: | 12 Months |
| High Light: | Transformer Making Automatic Coil Winding Machine,PLC Control Automatic Coil Winding Machine,PLC Control Coil Winding Machine |
||
Transformer Making Machine PLC Control Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX1200
Transformer coil winding machine is a specialized transformer making machine, which is mainly used to wind wire coils. These wound coils can be used in transformers or other similar products. The automatic coil winding machine can wind both copper wires and aluminium wires. The coil winding machine is provided with one servo motor to drive wire guide to move for laying wire. The automatic coil winding machine is also provided with PLC and a touch screen, which makes the coil winding machine have high automation. It is very easy to operate the coil winding machine.
Features of automatic coil winding machine ZPX1200
Main Parameters of automatic coil winding machine ZPX1200
The following is the standard specifications of automatic coil winding machine ZPX1200 and the machine can also be manufactured as requested.
| Center Height From Floor: | 900mm |
| Winding Square Shaft Size: | 50x50x1500mm |
| Maximum Winding Width: | 1200mm |
| Winding Power: | 5.5kw |
| Winding Speed: | 0 ~ 160 rpm |
| Regulation: | stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | Φ0.3mm ~ Φ5.0mm |
| Maximum wound Coil OD.: | Φ800mm |
| Maximum Capacity: | 800kg |
| Counting Mode: | 5-digit counting |
| Max. Numbers of Turns Preset: | 9999.9 |
| Counting Turn Range: | 0 ~ 9999.9 |

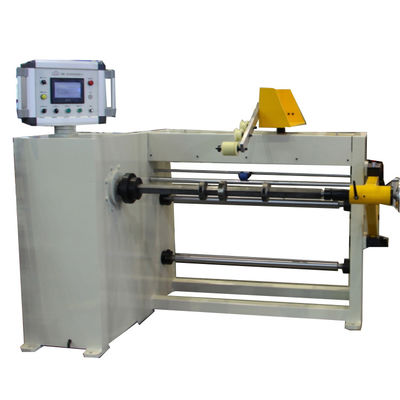

Fig 1: Automatic coil winding machine ZPX1200's front view
Fig 2: Automatic coil winding macihne ZPX1200's side view
