| Product Name: | Tranformer Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Winding Speed: | 0 ~ 16rpm | Winding Power: | 30kw |
| Color: | Optional | Warranty: | 12 Months |
| Highlight: | LV Transformer Foil Winding Machine,Two Foil Decoilers Foil Winding Machine,TIG Welding Foil Winding Machine |
||
Two Foil Decoilers TIG Welding LV Transformer Foil Winding Machine
Introduction of transformer foil winding machine BRJ1600-2
Transformer foil winding machine BRJ1600-2 is a special winder equipment for winding conductor foil to make foil coils. These foil coils can be used in dry type transformers or other similar products. The transformer foil winding machine is provided with two sets of foil decoilers, which makes the transformer foil winding machine can wind one or two layers of conductor foil. With two insulation decoilers, the transformer foil winding machine can also wind two layers of insulation paper. The transformer foil winding machine is controlled through PLC. The transformer foil winding machine is easy operated with HMI.
Features of transformer foil winding machine BRJ1600-2
Main parameters of transformer foil winding machine BRJ1600-2
The following is the standard specification of transformer foil winding machine BRJ1600-2, however, the transformer foil winding machine can also be manufactured as requested.
| Foil Width: | 350 ~ 1,600mm |
| Maximum Finished Coil OD.: | Ø1,000mm |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 sets |
| Insulation Decoiler Number: | 2 sets |
| Winding Power: | 30kw |
| Winding Speed: | 0 ~ 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Range: | 0 - 9999.9 |

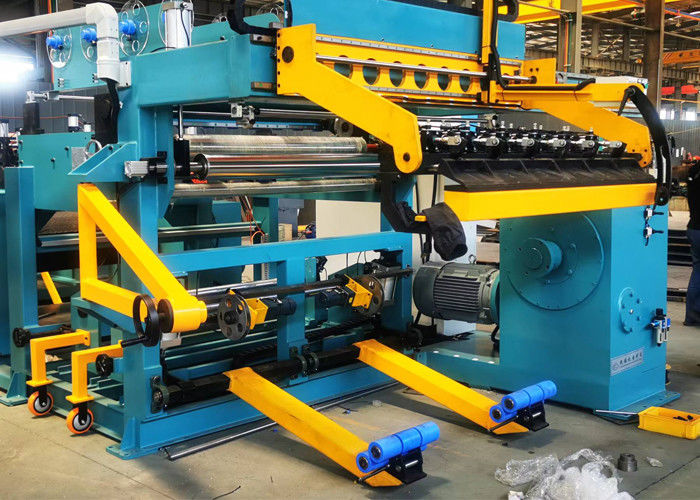

Fig 1: Transformer foil winding machine BRJ1600-2's front view
Fig 2: Transformer foil winding machine BRJ1600-2's back view
