| Name: | Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Foil Width: | Maximum 200mm | Foil Thickness: | 0.2 ~ 3mm |
| Motor Power: | 4kw | Foil Decoiler: | One Set |
| Welding Mold: | 6 Pcs | Warranty Period: | 12 Months |
| Highlight: | Dry Transformer Foil Winding Machine,Cold Press Welding Foil Winding Machine,Copper Transformer Foil Winding Machine |
||
Cold Press Welding Copper Foil Winder Dry Transformer Foil Winding Machine
Brief Introduction of Transformer Foil Winding Machine BRJ200
Transformer foil winding machine BRJ200 is a special equipment for winding small size foil coil with maximum height 200mm. The finished foil coil can be used in transformers and other similar products. The transformer foil winding machine is provided with cold press welding unit, which can welder different material (copper or aluminium) together. Different pressing mould is provided to be suitable for welding different thickness of foils and bus bars. Servo motors are used to guarantee the precision. Touch screen is for inputting all necessary parameters to make the machine run automatically. The foil winding machine features compact, high automation, high precision, etc.
Main Components of Transformer Foil Winding Machine BRJ200:
1. Main iron frame
2. Two foil decoiler
3. Pressing rollers
4. Servo motor driven
5. Two insulation decoiler
6. Rectifying system
7. Automatic cold press welding unit
8. Pneumatic unit
9. Electrical control system
10. Foot pedal
Technical Parameters of Transformer Foil Winding Machine BRJ200
Typical standard specifications of BRJ200 are shown below and the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 200mm |
| Maximum Finished Coil OD. : | Ø600mm |
| Finished Coil Shape: | Round, Oval and Rectangle |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Ø500mm |
| Foil Material OD.: | ≤ Ø1000mm |
| Foil Decoiler Quantity: | 1 pc |
| Foil Decoiler Expanding Range: | 420～520mm |
| Max Coil Weight: | 1000kg |
| Rectifying Mode: | Photoelectric sensing |
| Cleaning: | pneumatic |
| Deburring: | pneumatic |
| Insulation Decoiler Quantity: | 2 pc |
| Insulation Paper Coil OD.: | ≤ Ø400mm |
| Insulation Paper Coil ID.: | Ø76mm |
| Insulation Decoiler Expanding Range: | Ø73～78mm |
| Winding Speed: | 0～35 RPM |
| Main Motor Power: | 4kw |
| Welding Pressure: | 200 KN |
| Cold Welding Device: | 1 set |
| Positioning Bus Bar Device: | 1set |
| Electric Grinding Device: | 1 set |
| Cold Welding Mould: | 6 pcs |
| Control System: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 - 9999.9 |

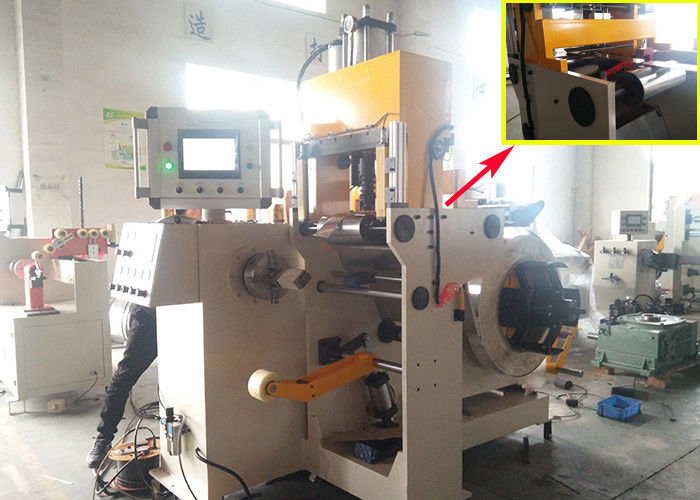

Fig 1: Transformer foil winding machine BRJ200's full view
Fig 1: Transformer foil winding machine BRJ200's side view
