Automatic TIG Welding Low Voltage Transformer Foil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transformer Foil Winding Machine | Function: | Making Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Max. Foil Width: | 1200mm | Machine Color: | As Requested |
| Motor Power: | 15kw | Rotating Speed: | 0 ~ 20rpm |
| Highlight: | Low Voltage Transformer Foil Winding Machine,TIG Transformer Foil Winding Machine,Automatic Transformer Foil Winding Machine |
||
Automatic TIG Welding Low Voltage Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1200-2
Transformer foil winding machine is a professional conductor foil winder equipment, and the transformer foil winding machine can wind both copper foil and aluminium foil to make foil coils. These wound foil coils can be used in dry type transformer or other similar products. This kind of transformer foil winding machine is provided with two foil decoilers and insulation decoilers, which makes the foil winding machine can wind one or two layers of foil and one or two layers of insulation paper at one time. The transformer foil winding machine is provided with control system based on PLC and HMI, which makes the machine be operated easily.
Main components of transformer foil winding machine BRJ1200-2
- Main frame
- Winding unit
- Foil decoiler
- Insulation decoiler
- End-fill strip feeder
- Cleaning system
- Cutting system
- Foil deburring system
- Edge alignment system
- Automatic welding unit
- Electronic control system
- Pneumatic system
Technical parameters of transformer foil winding machine BRJ1200-2
Typical standard specifications of transformer foil winding machine BRJ1200-2 are shown below and the transformer foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,200mm |
| Max. Finished Coil OD: | Φ1,000mm |
| Finished Coil Shape: | oval, circle and rectangular |
| Conductor Foil Material: | Copper or Aluminum |
| Foil Thickness Min. and Max. (Aluminum): | 0.3 ~ 3.0 mm |
| Foil Thickness Min. and Max. (Copper): | 0.2 ~ 2.0 mm |
| Conductor Foil Material OD.: | Φ1,000mm |
| Conductor Foil Material ID.: | Φ500mm |
| Winding Power: | 15KW |
| Winding speed: | 0 ~ 20 rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |

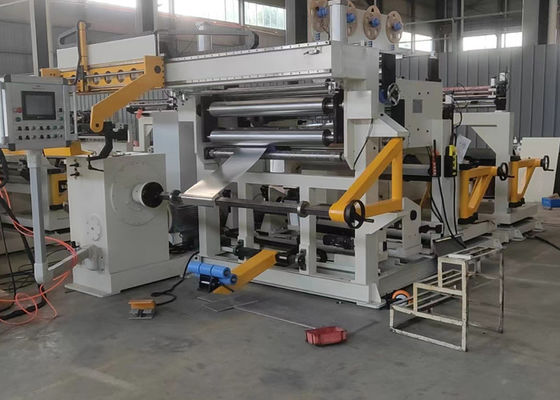

FIG 1: Transfomer foil winding machine's side view
Fig 2: Transformer foil winding machine BRJ1200-2's back view
