Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Tranformer Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Rotating Speed: | 0 ~ 16rpm | Main Power: | 30kw |
| Foil Decoiler: | Two Sets | Warranty: | 12 Months |
Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine
Introduction of transformer foil winding machine BRJ1600-2
Transformer foil winding machine BRJ1600-2 is a professional foil winder, which is mainly used to wind conductor foil, including copper foil and aluminium foil, to make foil coils. This kind of foil coils can be used in cast resin transformers or other similar products. With two sets of foil decoilers, the transformer foil winding machine can wind one or two layers of conductor foil at once. With two insulation decoilers, the transformer foil winding machine can also wind one or two layers of insulation paper at once. The transformer foil winding machine is provided with a PLC to control the machine. With HMI, the transformer foil winding machine can be operated easily. The transformer features slow starting, smooth running and so on,
Features of transformer foil winding machine BRJ1600-2
- Slow starting, when the machine starts, the winding speed is very slow for safety
- Running smooth, the machine runs smoothly during running
- High automation, control system based on PLC makes the machine high automation
- Full function
- Big power of a 30kw motor
- Neat foil edge, de-burring unit makes the foil edge neat
- Tight winding, big tension guarantees tight winding
- Easy operation
Main parameters of transformer foil winding machine BRJ1600-2
The following is the standard specification of transformer foil winding machine BRJ1600-2 and the transformer foil winding machine can also be manufactured as requested.
| Foil Width: | 350 ~ 1,600mm |
| Maximum Finished Coil OD.: | Ø1,000mm |
| AL Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 sets |
| Insulation Decoiler Number: | 2 sets |
| Winding Power: | 30kw |
| Winding Speed: | 0 ~ 16rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning Foil Device: | Pneumatic control |
| Edge Alignment System: | Photoelectric sensing |
| Counting Range: | 0 - 9999.9 |

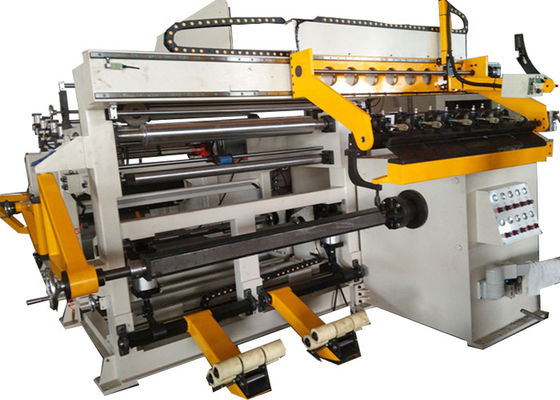

Fig 1: Transformer foil winding machine BRJ1600-2's front view
Fig 2: Transformer foil winding machine BRJ1600-2's back view
