Automatic Cold Welding One Foil Decoiler LV Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ200
Automatic Transformer Copper Foil Winding Machine With Cold Pressure Welding BRJ300 is a special winding equipment for winding small size foil coils. This foil winding machine can handle one layer of copper or aluminium foil and one layer of insulation paper. This machine adopts cold pressure welding to weld foil and bus bar together. There is six sets of mold provided for welding different specifications of foil. It can weld different material, such as welding aluminium foil with copper bar.
Main Components of transformer foil winding machine BRJ200
1. Main frame
2. Foil decoiler
3. Foil feeder
4. Pressing roller
5. Main winding unit
6. Control system based on PLC
7. Pneumatic system
Technical parameters of transformer foil winding machine BRJ200
Typical standard specifications of transformer foil winding machine BRJ200 are shown below and the foil winding machine can also be manufactured as requested.
|
Foil width: |
100 - 200mm |
|
Finished Coil Shape: |
Oval, circle and rectangular |
|
Foil Material: |
Copper or Aluminum foil |
|
Al Foil Thickness: |
0.3 ~ 3.0 mm |
|
Cu Foil Thickness: |
0.2 ~ 2.0 mm |
|
Foil Decoiler Number: |
1 pc |
|
Foil Decoiler Diameter: |
Adjustable range Ø480 ~ 520mm |
|
Max Coil Weight: |
750 KG |
|
Pressing Roller: |
1 set |
|
Tension Mode: |
Pneumatic |
|
Speed Adjusting Mode: |
Stepless adjustable |
|
Winding Speed: |
0 ~ 35 rpm |
|
Insulation Decoiler Number: |
1 pc |
|
Insulation Decoiler Width: |
250mm |
|
Insulation Decoiler Shaft: |
Expandable (pneumatic open/close action) |
|
Programming Type: |
PLC |
|
User Interface: |
10inch (254mm) touch screen |
|
Counting Range: |
0 - 9999.9 |

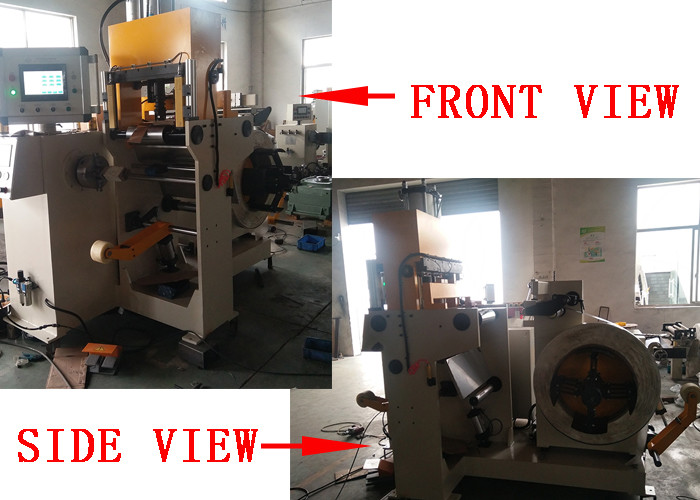

Fig 1: Transformer foil winding machine BRJ200's full view
Fig 2: Transformer foil winding machine BRJ200's side view
