Transformer Coiling Machine Automatic Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Automatic Coil Winding Machine | Rotating Power: | 4kw |
|---|---|---|---|
| Rotating Speed: | 0 ~ 160rpm | Conductor Wire: | Flat Wire Or Round Wire |
| Control System: | PLC | Display Mode: | Touch Screen |
| Tension Control: | Pneumatic | Winding Direction: | Forward/Reverse |
| Wire Diameter: | 0.3~ 5.0mm | Machine Color: | As Requested |
| Highlight: | Automatic Coil Winding Machine,Transformer Coiling Machine,Transformer Coiling Machine Automatic |
||
Transformer Coiling Machine Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX800
Automatic coil winding machine ZPX800 is a special wire coiling machine. The coil winding machine can wind both copper wire and aluminium wire to make wire coils. This kind of wire coils can be used to make transformers or other similar products. The automatic coil winding machine is provided with one wire guide and the wire guide is driven by a servo motor. With the wire guide, the coil winding machine can lay the wire automatically. The automatic coil winding machine is provided with PLC and HMI. The automatic coil winding machine features slow starting, smooth running, high torque, and easy operation, etc.
Main parameters of automatic coil winding machine ZPX800
The typical standard specifications of automatic coil winding machine ZPX800 is as following and the coil winding machine can also be manufactured as requested.
|
Center Height: |
900mm |
|
Winding Shaft Size: |
40x40mm |
|
Maximum Winding Width: |
800mm |
|
Winding Motor: |
4kw |
|
Winding Speed: |
0 ~ 160 rpm |
|
Speed Regulation: |
stepless |
|
Max. Flat Wire Size: |
5X12mm |
|
Round Wire Diameter: |
Ø0.3mm ~ Ø5.0mm |
|
Maximum Wound Coil OD.: |
Ø800mm |
|
Maximum Capacity: |
700kg |
|
Counting Mode: |
5-digit counting |
|
Counting Range: |
0 ~ 9999.9 |

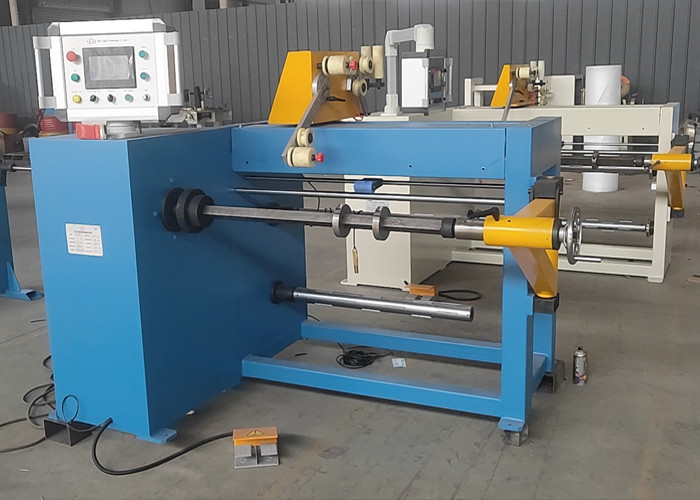

Fig 1: Automatic coil winding machine ZPX800's front view
Fig 2: Automatic coil winding machine ZPX800's wire guide
