Description of transformer coil winding machine ZPX1200

Transformer coil winding machine ZPX1200 is a professional transformer coil winding machine. The transformer coil winding machine offers high precision, efficiency, and repeatability. The operator simply load the program and the coil winding machine can wind the coil automatically. The coil winding machine can handle both round wire and flat wire coils. These kinds of coils can be used in transformers and other similar products. The transformer coil winding machine is provided with a wire guide, PLC and touch screen, which makes the transformer coil winding machine be operated easily.

Main components of transformer coil winding machine ZPX1200

1.  Main frame

2.  Winding unit

3.  Automatic wire laying unit

4.  Insulation decoiler

5.  Electronic control system

6.  Pneumatic system

Technical parameters of transformer coil winding machine ZPX1200

Typical standard specifications of transformer coil winding machine ZPX1200 are shown below and the transformer coil winding machine can also be manufactured as requested.

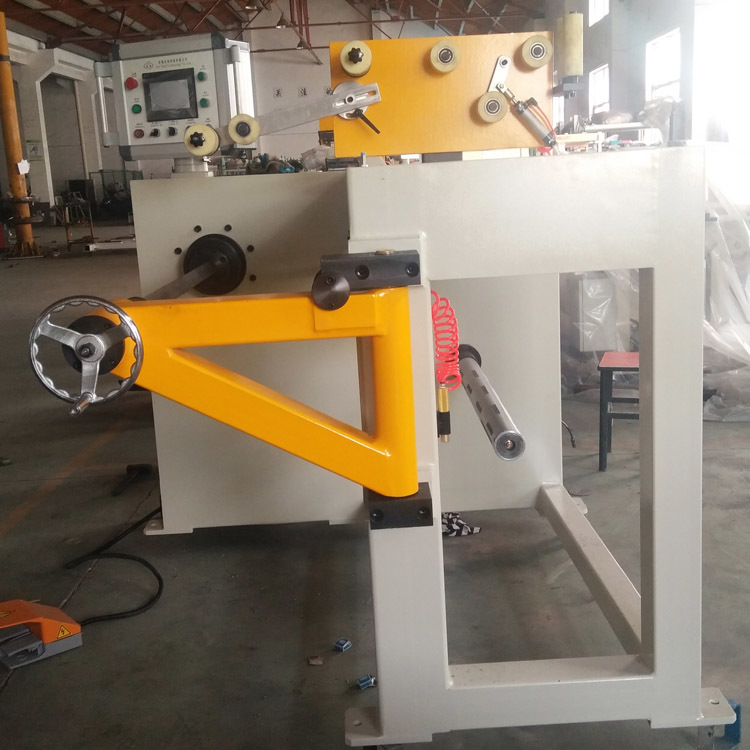

Fig 1: Transformer coil winding machine ZPX1000's front view

Fig 2: Transformer coil winding machine ZPX1000's wire guide
