Automatic Coil Winding Machine with 400mm Winding Width 0.75kw Servo Motor and 3kw Motor Power

Factory Sales Transformer Coiling Machine Automatic Coil Winding Machine

Description of automatic coil winding machine ZPX400

Automatic coil winding machine ZPX400 is one kind of professional transformer coil winding machine. This kind of  automatic coil winding machine can wind both copper wire and aluminium wire. The wire wound coils can be used to make transformers and other similar products. With wire guide driven by servo motor, the automatic coil winding machine can lay the wire automatically when the wire is wound. The automatic coil winding machine is provided with PLC and HMI, which makes the machine be with high automation and be operated easily. The automatic coil winding machine features slow starting, smooth running, high torque and so on.

Quick details of automatic coil winding machine ZPX400

·  900mm center height from floor

· Maximum 400 winding width

· Winding speed 0 - 200rpm

· Rotating diameter 800mm

· Winding power 3kw

· Servo motor power 0.75kw

Main parameters of automatic coil winding machine ZPX400

The typical standard specifications of coil winding machine ZPX400 are as following and the coil winding machine can also be manufactured as requested.

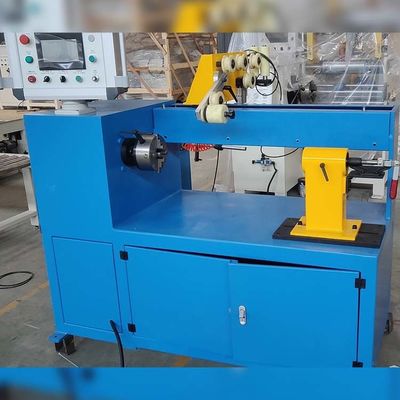

Fig 1: Automatic coil winding machine ZPX400's front view

Fig 2: Automatic coil winding machine ZPX400's wire guide
