Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine

1 set
MOQ
negotiable
Price
Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Tranformer Foil Winding Machine
Usage: Winding Foil Coil
Cu Foil Thickness: 0.2 ~ 2.0mm
Al Foil Thickness: 0.3 ~ 3.0mm
Winding Speed: 0 ~ 16rpm
Main Power: 30kw
Foil Decoiler: Two Sets
Warranty: 12 Months
Highlight:

TIG welding foil winder

,

low voltage transformer winding machine

,

foil winding machine for transformers
Basic Infomation
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: BRJ1600-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T,L/C
Supply Ability: 100 sets per year
Product Description
Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine
Professional Foil Winding Machine BRJ1600-2
The Transformer Foil Winding Machine BRJ1600-2 is a professional foil winder designed for winding conductor foil, including copper foil and aluminum foil, to create foil coils for cast resin transformers and other similar products.
Advanced Dual-System Design
Equipped with two sets of foil decoilers, the foil winding machine can wind one or two layers of conductor foil simultaneously. With two insulation decoilers, the foil winding machine can also wind one or two layers of insulation paper at once. The PLC-based control system with HMI interface ensures easy operation and high automation of the foil winding machine.
Key Features
  • Slow starting mechanism for enhanced safety during startup
  • Smooth running operation throughout the winding process
  • High automation with PLC-based control system
  • Comprehensive functionality for various winding requirements
  • Powerful 30kw main winding motor for robust performance
  • Neat foil edges with integrated de-burring unit
  • Tight winding capability with high tension control
  • User-friendly operation with intuitive controls
Technical Specifications
Foil Width 350 ~ 1,600mm
Maximum Finished Coil OD Ø1,000mm
AL Foil Thickness 0.3 ~ 3.0 mm
Cu Foil Thickness 0.2 ~ 2.0 mm
Maximum Conductor Material OD Φ1,000mm
Conductor Material ID Φ500mm
Foil Decoiler Number 2 sets
Insulation Decoiler Number 2 sets
Winding Power 30kw
Winding Speed 0 ~ 16rpm
Welding Mode TIG
Cutting Mode Electric disc shear
Foil Deburring System Pneumatic control
Cleaning Foil Device Pneumatic control
Edge Alignment System Photoelectric sensing
Counting Range 0 - 9999.9
Machine Overview
Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine 0

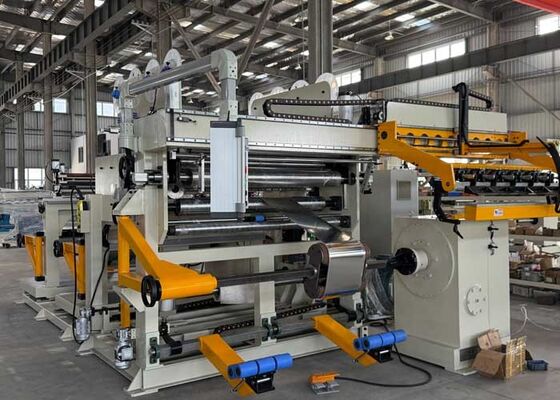

Fig 1: Front view of Transformer Foil Winding Machine BRJ1600-2
Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine 1

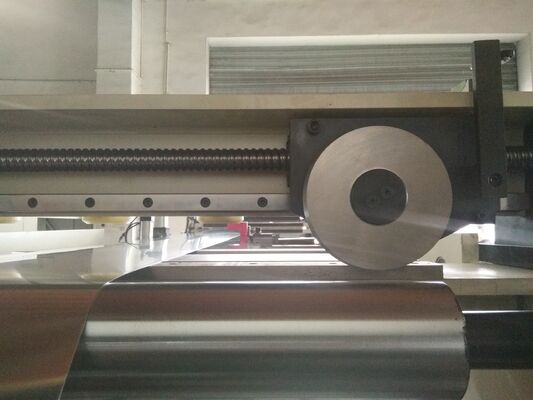

Fig 2: Back view of Transformer Foil Winding Machine BRJ1600-2
Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine 2
 Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine 3 Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine 4 Foil Winder TIG Welding Low Voltage Transformer Foil Winding Machine 5
