Automatic Coil Winding Machine with 400mm Winding Width, 0.75kw Servo Motor for 5x12mm Flat Wire Transformer Coil Winding

Automatic Coil Winding Machine HV Copper Wire Winder

Description of automatic coil winding machine ZPX400

Automatic coil winding machine ZPX400 is a professional transformer coil winding machine for winding copper wire or aluminium wire, which can make transformer coils and other similar products. The automatic coil winding mahcine is provided with wire guide driven by servo motor, which makes the automatic coil winding machine lay the wire automatically when the wire is being wound. The automatic coil winding machine’s control system is based on PLC, which makes the machine be with high automation and be operated easily.

Quick details of automatic coil winding machine ZPX400

·  900mm center height from floor

· Maximum 400 winding width

· Winding speed 0 - 200rpm

· Rotating diameter 800mm

· Winding power 3kw

· Servo motor power 0.75kw

Main parameters of automatic coil winding machine ZPX400

The typical standard specifications of coil winding machine ZPX400 are as following and the coil winding machine can also be manufactured as requested.

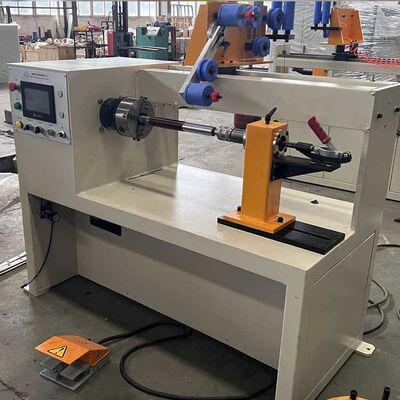

Fig 1: Automatic coil winding machine ZPX400's front view

Fig 2: Automatic coil winding machine ZPX400's wire guide
