JJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil Winder

1 set
MOQ
negotiable
Price
JJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil Winder
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Simple Transformer Foil Winding Machine
Decoiler Number: Two Pieces
Condition: New
Function: Winding Dry Type Transformer Coil
Foil Conductor: Copper And Aluminium Foil
Foil Width Max: 800mm
Powersupply: 380V, 50Hz, 3-phase
Warranty: 12 Months
Deburring Unit: 2 Sets
Machin Color: Optional
Basic Infomation
Place of Origin: China
Brand Name: STT/Zhutang
Certification: CE
Model Number: JJ-BRJ800-2
Payment & Shipping Terms
Packaging Details: seaworthy packing
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 100 sets per year
Product Description
JJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil Winder

Meta Description

JJ-BRJ800-2 simple transformer foil winding machine supports 200-800mm widht copper & aluminum foil winding, equipped with PLC control & foot pedal operation. Stable, cost-effective foil winder for oval, round, rectangular transformer coil production.

Product Overview

The JJ-BRJ800-2 Transformer Foil Winding Machine is a practical, easy-to-operate winding equipment specially developed for transformer manufacturing. Designed with a simplified and robust mechanical structure, this aluminum and copper foil winding machine realizes one or two layers of synchronous winding for metal foil and insulating paper, perfectly meeting the conventional winding demands of low and medium-power transformers. Different from complex industrial winding equipment, this foil winder features simple installation, smooth operation and convenient daily maintenance. Adopting professional PLC control system and precision counting device, the foil winding machine ensures accurate winding turns and uniform coil forming. Equipped with a humanized foot pedal control system, it supports flexible start, stop and steering switching, greatly improving production efficiency and operation safety for transformer foil processing.

Core Features & Advantages

  • Wide Winding Compatibility: Supports 200mm to 800mm width copper and aluminum foil, compatible with oval, round and rectangular transformer coil shapes to diversify production needs.
  • Intelligent PLC Control: Adopts mature PLC electrical control system with digital counter, realizing precise winding parameter setting and real-time data display, effectively reducing manual operation errors.
  • Dual Synchronous Winding: Configured with dual foil decoilers and dual insulation paper decoilers, realizing synchronous lamination winding of metal foil and insulating paper for standardized transformer insulation structure.
  • Stable & Durable Performance: Simple reinforced frame structure ensures long-term stable operation; adjustable rotating speed (0-20 RPM) adapts to different foil thickness and processing requirements.
  • User-Friendly Operation: Foot pedal control frees hands for flexible operation; full set of electric control cabinet realizes centralized circuit management, safer and easier for maintenance.

Main Machine Components

The JJ-BRJ800-2 transformer foil winding machine adopts modular configuration, with complete and reasonable component layout, convenient for disassembly, maintenance and replacement. The main components include:
  1. Reinforced simple machine frame
  2. Precision winding unit
  3. 2 sets of adjustable foil decoilers
  4. 2 sets of insulation paper decoilers
  5. Intelligent PLC control system
  6. Digital counting device (0-9999.9 turns)
  7. Foot pedal control switch
  8. Electric control cabinet

Technical Parameters

Below are the standard technical parameters of the JJ-BRJ800-2 transformer foil winding machine. All specifications support personalized customization to match customers' actual production scenarios.
Technical Item
Detailed Specification
Applicable Foil Width
200mm ~ 800mm
Finished Coil Shape
Oval, Round, Rectangular
Max. Foil Material Outer Diameter (OD)
Φ1000mm
Foil Material Inner Diameter (ID)
Φ500mm
Foil Decoiler Quantity
2 Pcs
Foil Decoiler Effective Length
850mm
Foil Decoiler Expanding Range
Φ420mm ~ Φ520mm
Winding Motor Power
11KW
Winding Shaft Size
80×80×1150mm
Adjustable Rotating Speed
0 ~ 20 RPM
Insulation Decoiler Quantity
2 Pcs
Max. Insulation Material Outer Diameter
Φ400mm
Insulation Material Inner Diameter
Φ76mm
Insulation Decoiler Effective Length
850mm
Digital Counting Range
0 ~ 9999.9 Turns

Application Scope

This JJ-BRJ800-2 foil winding machine is widely applicable for winding processing of power transformers, distribution transformers and small electrical transformers. It is suitable for mass production of copper foil and aluminum foil coils, and is the ideal cost-effective processing equipment for transformer manufacturing factories.

Core Keywords

Transformer foil winding machine, aluminum foil winding machine, copper foil winder, simple foil winding machine, transformer coil winding equipment

JJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil Winder

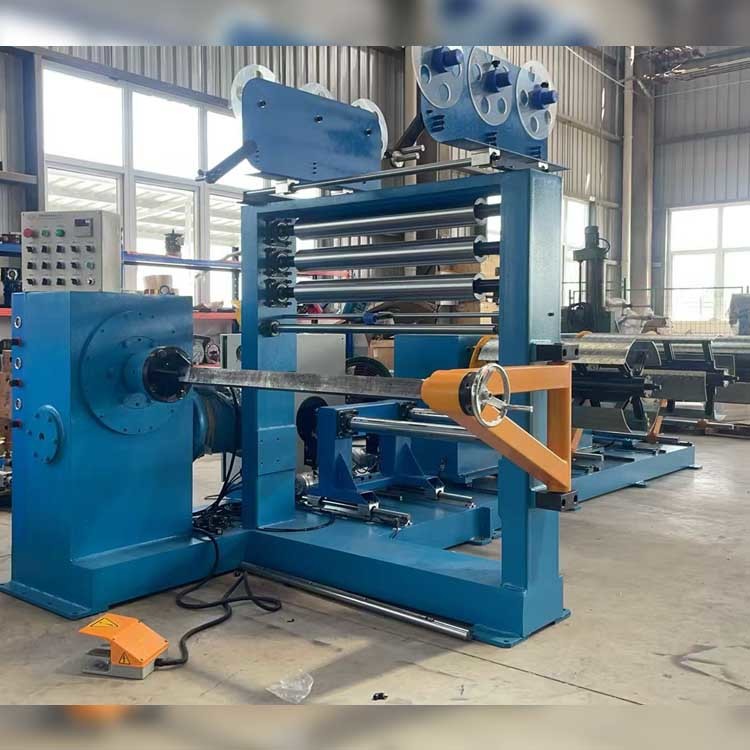

Fig 1: Transformer foil winding machine JJ-BRJ800-2's full view


JJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil Winder

Fig 2: Transformer foil winding machine JJ-BRJ800-2's foil decoiler


JJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil WinderJJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil WinderJJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil WinderJJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil WinderJJ-BRJ800-2 Transformer Foil Winding Machine | Simple Aluminum Copper Foil Winder
