Automatic Transformer Coil Winding Machine with PLC Control, 200rpm Speed for Flat or Round Wire

Factory Direct Automatic Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX500

The ZPX400 Transformer Coil Winding Machine is a dedicated industrial winder for copper and aluminum wire coil production. The coil winding machine's servo-driven wire guide delivers highly accurate traverse movement to ensure neat winding. Designed for transformer and similar electromagnetic component manufacturing, this kind of coil winding machine supports both round and flat wire winding. Controlled by PLC with HMI touchscreen interface, the coil winding machine offers intuitive operation. The coil winding machine features a 500mm max winding width, built-in pneumatic system and foot pedal control, ideal for stable, repeatable coil production in transformer workshops.

Quick details of transformer coil winding machine ZPX500

• 4kw motor
• Maximum winding speed 200rpm
• PLC based control system
• Winding flat or round wire
• pneumatic system
• Foot pedal

Technical parameters of transformer coil winding machine ZPX500

Typical standard specifications of transformer coil winding machine ZPX500 are shown below and the transformer coil winding machine can also be manufactured as requested.

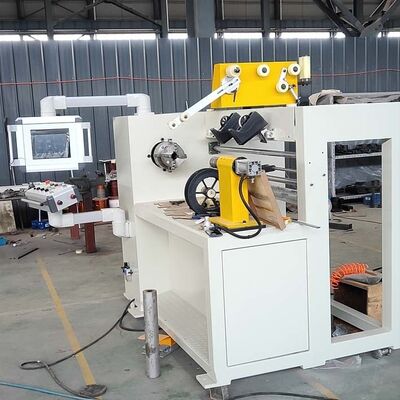

Fig 1: Transformer coil winding machine ZPX400's front view

Fig 2: Transformer coil winding machine ZPX400's 4-jaw chuck
