ZPX400 Automatic Coil Winding Machine with 400mm Maximum Winding Width PLC Control for Copper and Aluminum Wire

1 set

MOQ

negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Transformer Coil Winding Machine

Function: Winding Wire Coil

Wire Conductor: Aluminium Or Copper Wire

Conductor Type: Round Or Flat Wire

Round Wire: ∅0.3 ~ 5.0mm

Flat Wire Size: Maximum 5x12mm

Color: Customizable

Warranty: 12 Months

Highlight:

400mm Maximum Winding Width Automatic Coil Winding Machine

PLC Control System Automatic Coil Winding Machine

Copper and Aluminum Wire Compatibility Transformer Coil Winding Machine

Basic Infomation

Place of Origin: China

Brand Name: SZT

Certification: CE

Model Number: ZPX400

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 35 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

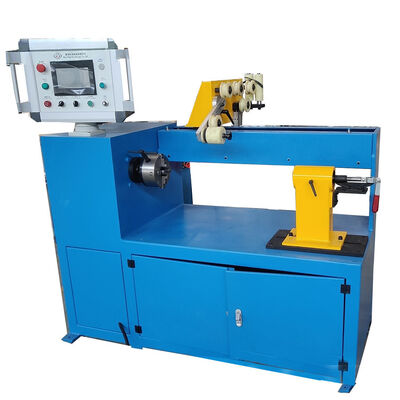

ZPX400 Automatic Coil Winding Machine with 400mm Maximum Winding Width PLC Control for Copper and Aluminum Wire

Product Description

Transformer Wire Coil Winder ZPX400 Automatic Coil Winding Machine

Name: ZPX400 Automatic Coil Winding Machine with 400mm Maximum Winding Width PLC Control for Copper and Aluminum Wire
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: ZPX400
Price: 10,000.00 USD
Availability: InStock

Product Description

The ZPX400 automatic coil winding machine is a professional, high-precision winding solution specially designed for high voltage transformer coil production. This kind of coil winding machine is suitable for winding copper and aluminum wires to produce standard coils for transformers and other electromagnetic equipment. Equipped with a precise wire guide mechanism and advanced PLC + touch screen control system, the coil winding machine supports automatic coil winding. Users can set customized parameters to produce coils of different sizes steadily. With a maximum winding width of 400mm, this winding machine delivers high automation, simple operation and consistent winding quality for industrial mass production.

Product Main Features

Soft start function: realizes gentle start to avoid wire damage and ensure stable winding initialization
Smooth operation: stable mechanical structure ensures vibration-free and uniform running status
Strong driving power: sufficient torque supports stable winding of thick wires and heavy coils
High operational reliability: durable components and mature control system reduce failure rate
Excellent winding accuracy: precise wire arrangement effectively avoids wire overlapping and gaps
High automation level: minimizes manual intervention and improves overall production efficiency

Technical Parameters

Below are the standard specifications of the ZPX400 high voltage transformer coil winding machine. Customized production is available to meet diverse customer processing requirements.

Center height:	900mm
Square Shaft Size:	40x40x700mm
Maximum Winding Width:	400mm
Rotating Speed:	0 ~ 200 rpm
Motor Power:	3kw
Maximum Flat Wire Size:	3X10mm
Round Wire Diameter:	Ø0.3 ~ 4.0mm
Maximum Rotating OD.:	Ø500mm
Maximum Capacity:	200kg
Counting:	5-digit counting
Counting Range:	0 ~ 9999.9

ZPX400 Automatic Coil Winding Machine with 400mm Maximum Winding Width PLC Control for Copper and Aluminum Wire
