Automatic Transformer Foil Winding Machine With Cold Pressure Welding
Description of transformer foil winding machine BRJ200
Automatic transformer foil winding machine BRJ200 is a special foil winding machine for winding transformer foil coils and other similar products. The transformer foil winding machine can be used to wind copper or aluminium strip with maximum width 200mm and it can handle one layer of foil and one layer of insulation paper. The foil winding machine is provided with PLC control system, which can make the machine run automatically as per the parameters input. The foil winding machine features slow staring, smooth running, high automation, full function, etc. It is very easy to operate the machine.
Quick details of transformer foil winding machine BRJ200
Technical parameters of transformer foil winding machine BRJ200
Typical standard specifications of transformer foil winding machine BRJ200 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 200mm |
| Finished Coil OD. : | 600mm |
| Coil Shape: | Round, Oval and Rectangle etc. |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | 500mm |
| Foil Material OD.: | ≤ 1000mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Length: | 250mm |
| Foil Decoiler Expanding Range: | Φ420 ~ Φ520mm |
| Max Coil Weight: | 750kg |
| Rectifying Mode: | Photoelectric sensing |
| Rectifying Deviation Precision: | ±0.5mm |
| Cleaning Unit: | pneumatic |
| Insulation Paper Decoiler Number: | 1set |
| Insulation Paper Coil OD.: | ≤ 400mm |
| Insulation Paper Coil ID.: | 76mm |
| Insulation Decoiler Width: | 250mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~ 60 RPM |
| Max. Working Torque: | 3,000N.m. |
| Winding Power: | 4kw |
| Welding Pressure: | 200 KN |
| Cold Welding Device: | 1 set |
| Positioning Device: | 1set |
| Grinding Device: | 1 set |
| Cold Welding Mould: | 6 sets |
| Control system: | PLC |
| Operation Interface: | Touch screen |
| Counting Range: | 0 ~ 9999.9 |

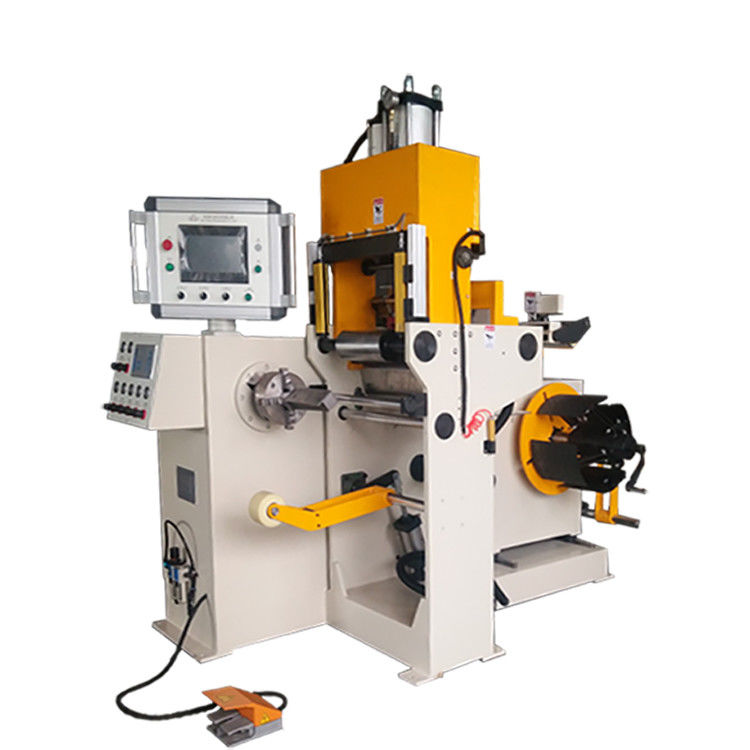

Fig 1: Transformer foil winding machine BRJ200's full view
Fig 2: Transformer foil winding machine BRJ200's back view
