| Product Name: | Transformer Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Winding Motor: | 22kw | Winding Speed: | 0 ~ 18 Rpm |
| Cu Strip Thickness: | 0.2 ~ 2.0mm | Al Strip Thickness: | 0.3 ~ 3.0mm |
| Deburring Unit: | 2 Sets | Cleaning Unit: | 2 Sets |
| High Light: | Transformer Foil Winder Dry Type,Programmable Transformer Foil Winding Machine,PLC System Transformer Foil Winding Machine |
||
Programmable PLC Control System Dry Type Low Voltage Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1400-2
Automatic LV transformer foil winding machine BRJ1400-2 is a professional winding equipment, which is mainly used to wind low voltage dry type transformer foil coils and other similar products. Both copper foil and aluminum foil can be handled by this kind of foil winding machine. With 22kw winding motor, this kind of transformer foil winding machine can handle one or two layers of foil and one or two layers of insulation material, such as paper or similar material. The transformer foil winding machine can wind the foil with maximum width 1400mm. With TIG welding machine and cooler, the transformer foil winding machine can weld foil with bus bar together. The automatic foil edge alignment makes sure that the coil edges are straight and smooth when winding. It is easy to operate the transformer foil winding machine through a touch screen.
Main components of transformer foil winding machine BRJ1400-2
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical Parameters of transformer foil winding machine BRJ1400-2
Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Diameter: | adjustable range 400-520mm |
| Max. Coil Weight: | 2,000KG |
| Winding Mandrel Size: | 80×80×1750 mm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(L*W*H) | 5800*2850*2500mm |

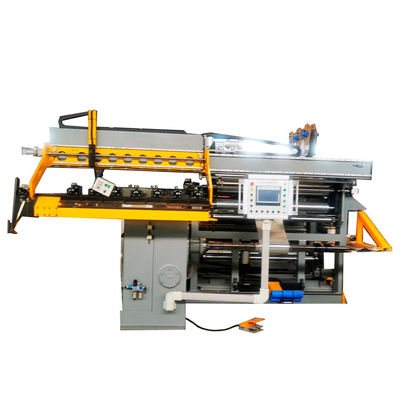

Fig 1: Transformer foil winding machine BRJ1400-2's front view
Fig 2: Transformer foil winding machine BRJ1400-2's back view
