| Name: | Transformer Foil Winding Machine | Function: | Making Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Max. Foil Width: | 1000mm | Color: | As Requested |
| Winding Motor Power: | 15kw | Winding Speed: | 0 ~ 18rpm |
| High Light: | Transformer Foil Winding Machine 15kw,Transformer Foil Winding Machine Width 1000mm,Transformer Foil Winding Machine 18rpm |
||
Cast Resin LV Transformer Foil Winding Machine With Maximum Width 1000mm Foil Strip
Description of transformer foil winding machine BRJ1000-2
Cast resin transformer foil winding machine BRJ1000-2 is for winding copper or aluminium foil coils to make cast resin transformer coils with maximum height 1000mm. The transformer foil winding machine is with two foil decoilers and two insulation decoilers, which makes the machine can handle one or two layers of foil and one or two layers of insulation paper. With 15kw main winding motor, the transformer foil winding machine provides a big torque. TIG welding unit is used to weld foil and bus bar together. The transformer foil winding machine features easy operation, big torque, smooth running and so on.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip feeder
4) Cleaning system
5) Foil deburring system
6) Cutting foil system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,000mm |
| Wound Coil Shape: | oval, circle and rectangular,etc. |
| Max Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 1,050mm |
| Foil Decoiler Expanding Range: | Φ420 ~ 520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic |
| Cleaning System: | Pneumatic |
| Insulation Decoiler Number: | 2 pcs |
| Max Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| Max Insulation Material Width: | 1,050mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |
| Counting Turns Range: | 0 ~ 9999.9 |

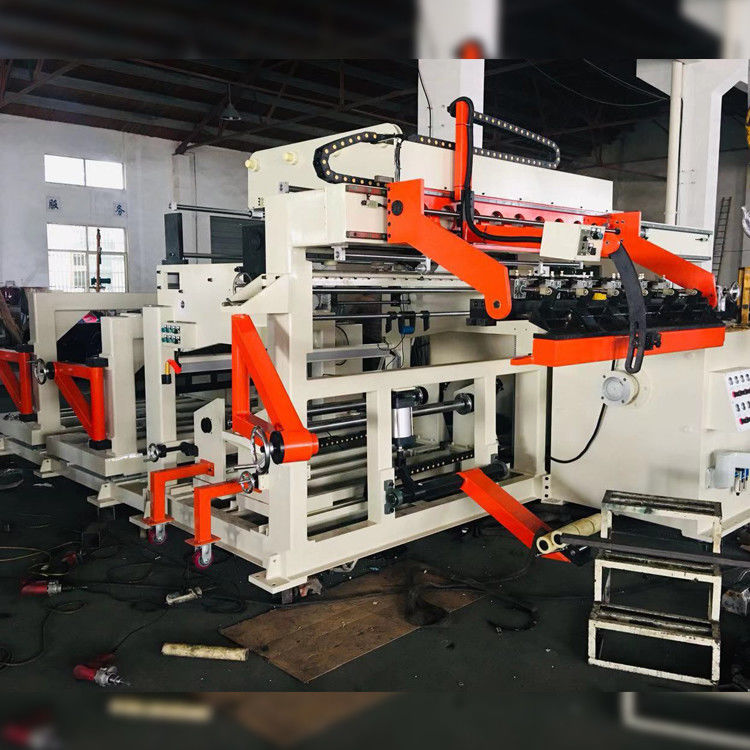

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
