Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Foil Winding Machine | Usage: | Winding Coil |
|---|---|---|---|
| Power: | 22kw | Winding Speed: | 0 ~ 18 Rpm |
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Deburring Unit: | 2 Sets | Cleaning Unit: | 2 Sets |
| High Light: | PLC Control Transformer Making Equipment,Dry Type Transformer Foil Winder,PLC Control Foil Winder |
||
Transformer Making Equipment PLC Control Dry Type Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1400-2
Transformer foil winding machine BRJ1400-2 is mainly used to wind low voltage dry type transformer coils and other similar products. The transformer foil winding machine can be used to wind both copper foil and aluminum foil with width from 200mm to 1400mm. The transformer foil winding machine can wind one or two layers of foil and one or two layers of insulation material, such as paper or similar material. The transformer foil winding machine can weld foil with bus bar together automatically. With photoelectric sensors, the transformer foil winding machine can make the wound coil edge alignment when winding. With the control system based on PLC and a touch screen, the transformer foil winding machine can be operated easily.
Main components of transformer foil winding machine BRJ1400-2
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical parameters of transformer foil winding machine BRJ1400-2
Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | Φ460 ~ 520mm |
| Max. Coil Weight: | 2,500KG |
| Winding Mandrel Size: | 80×80×1750 mm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 - 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(LxWxH) | 5800x2850x2500mm |

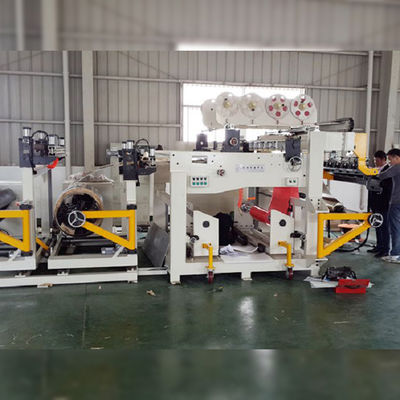

Fig 1: Transformer foil winding machine BRJ1400-2's front view
Fig 2: Transformer foil winding machine BRJ1400-2's back view
