| Product Name: | Transformer Foil Winding Machine | Function: | Making Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 1000mm | Color: | As Per Requirements |
| Winding Motor Power: | 15kw | Rotating Speed: | 0 ~ 18rpm |
| Highlight: | Width 1000mm Foil Winding Machine,Width 1000mm Foil Film Winder,Dry Transformer Foil Winder |
||
Winding Width 1000mm Wind Foil Machine Dry Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1000-2
Transformer foil winding machine BRJ1000-2 is mainly used to wind copper foil coils or aluminium foil coils. These foil coils can be used to make dry type transformer coils with maximum height 1000mm and other similar products. With two foil decoler and two insulation shaft, the transformer foil winding machine can wind one or two layers of foils and one or two layers of insulation paper. The transformer foil winding machine is privided with one 15kw motor to provide big torque. TIG welding unit is for welding foil and bus bar together. The transformer foil winding machine features easy operation, big torque, smooth running and so on.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip feeder
4) Cleaning system
5) Foil deburring system
6) Cutting foil system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,000mm |
| Wound Coil Shape: | oval, circle and rectangular,etc. |
| Max Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 1,050mm |
| Foil Decoiler Expanding Range: | Φ420 ~ 520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic |
| Cleaning System: | Pneumatic |
| Insulation Decoiler Number: | 2 pcs |
| Max Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| Max Insulation Material Width: | 1,050mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |
| Counting Turns Range: | 0 ~ 9999.9 |

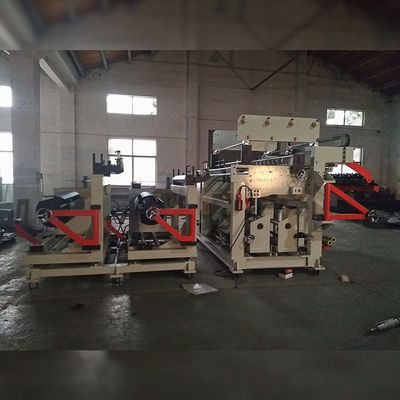

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
