| Product Name: | Transformer Foil Winding Machine | Usage: | Making Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 1000mm | Color: | As Per Requirements |
| Winding Motor Power: | 15kw | Rotating Speed: | 0 ~ 20rpm |
| High Light: | 20rpm Transformer Foil Winding Machine,Width 1000mm Wind Foil Machine,Dry Transformer Wind Foil Machine |
||
Winding Width 1000mm Wind Foil Machine Dry Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1000-2
Dry Transformer Foil Winding Machine BRJ1000-2 is a special machine specifically designed for winding transformer foil coils or similar products. Featuring a maximum width of 1,000 mm, this machine is able to wind 1 or 2 layers of both copper foil between 0.2mm through 2mm in thickness and aluminium foil between 0.3mm through 3mm in thickness. Powered by 15KW motor, the transformer foil winding machine is equipped with enough torque to efficiently wind foil and insulation paper. Providing additional functionalities are the TIG winding machine and water cooler which enables this machine to weld foil and bus bar together automatically. Furthermore, the operator can enjoy its user-friendly experience through the touch screen display control.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip feeder
4) Cleaning system
5) Foil deburring system
6) Cutting foil system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,000mm |
| Wound Coil Shape: | oval, circle and rectangular,etc. |
| Max Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 1,050mm |
| Foil Decoiler Expanding Range: | Φ420 ~ 520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic |
| Cleaning System: | Pneumatic |
| Insulation Decoiler Number: | 2 pcs |
| Max Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| Max Insulation Material Width: | 1,050mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |
| Counting Turns Range: | 0 ~ 9999.9 |

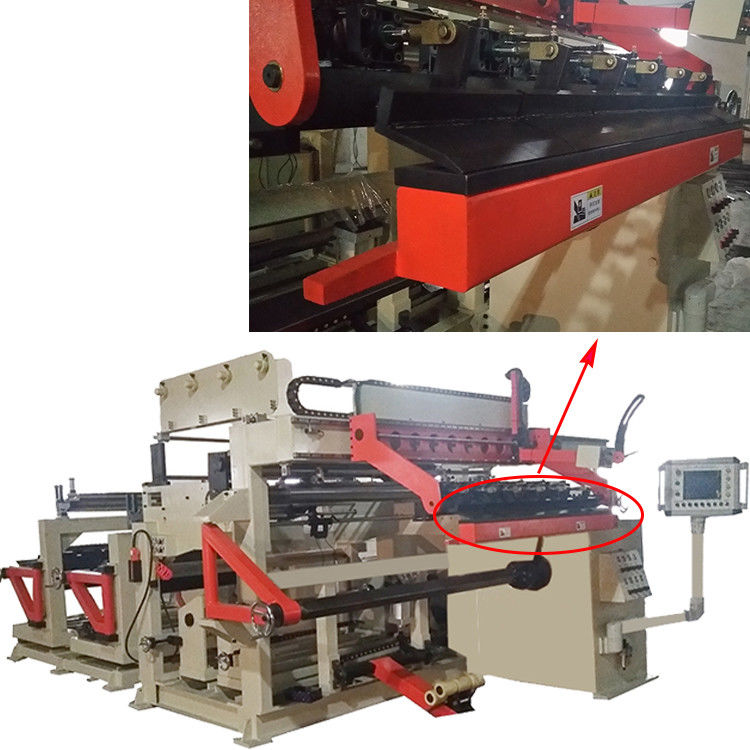

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
