| Product Name: | Transformer Foil Winding Machine | Function: | Winding Transformer Coil |
|---|---|---|---|
| Power: | 22kw | Rotating Speed: | 0 ~ 18 Rpm |
| Cu Film Thickness: | 0.2 ~ 2.0mm | Al Film Thickness: | 0.3 ~ 3.0mm |
| Deburring Unit: | 2 Sets | Warranty: | 12 Months |
| Highlight: | 18rpm Transformer Foil Winder,TIG Welded Transformer Foil Winding Machine,Precise Coil Transformer Winding Machine |
||
TIG Welded Cast Resin Transformer Foil Winding Machine For Precise Coil Winding
Description of transformer foil winding machine BRJ1400-2
Transformer foil winding machine BRJ1400-2 is a state-of-the-art device used for precisely and efficiently winding transformer coils using foil conductors. The transformer foil winding machine incorporates advanced technology and automation to simplify and enhance the winding process and ensures uniform and tightly wound coils, resulting in improved transformer performance. With two foil decoilers and two insulation decoilers, the transformer foil winding machine can handle one or two layers of foil conductor and handle one or two layers of insulation paper. The transformer foil winding machine can weld foil and bus bar together with TIG welding process. The transformer foil winding machine features slow starting, smooth running and easy operation.
Main components of transformer foil winding machine BRJ1400-2
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical parameters of transformer foil winding machine BRJ1400-2
Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | Φ460 ~ 520mm |
| Max. Coil Weight: | 2,500KG |
| Winding Mandrel Size: | 80×80×1750 mm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 - 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(LxWxH) | 5800x2850x2500mm |

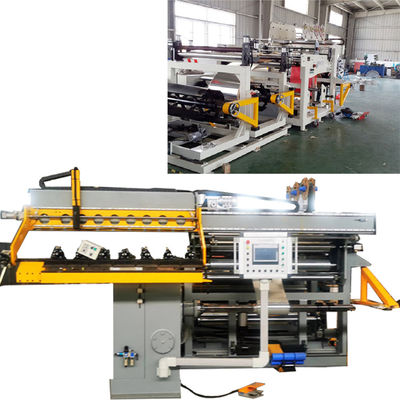

Fig 1: Transformer foil winding machine BRJ1400-2's front view
Fig 2: Transformer foil winding machine BRJ1400-2's back view
