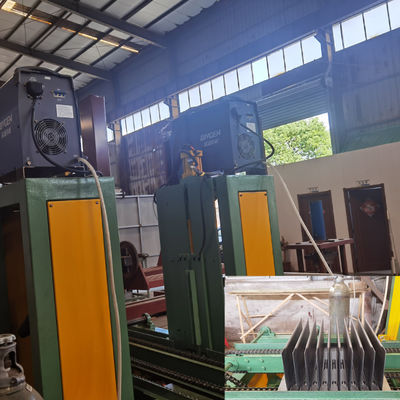

BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm

BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm

BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm
BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm

Large Image :  BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BWX1300-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Corrugated Fin Forming Machine Sheet Width: 300 ~ 1300mm
Fin Height: 50 ~ 400mm Fin Pitch: 45 ~ 60mm
Feeding Speed: 3 ~ 4 Fins/min Color: Customized
Usage: Making Corrugated Fins Warranty: 12 Months
High Light:

PLC Corrugated Fin Making Machine

,

300mm Corrugated Fin Forming Machine

,

3 Fins/Min Corrugated Fin Forming Machine

Corrugated Fin Forming Machine BWX1300-400 with Fin Width 300-1300mm



Introduction of corrugated fin forming machine BWX1300-400

Corrugated fin forming machine, also known as the corrugated fin production machine, is a specialized equipment used in the manufacturing process of corrugated fin. This kind of corrugated fins can be used to make transformer oil tanks and other similar products. The corrugated fin forming machine BWX1300-400 can corrugate plates with maximum width 1300mm and make the fin with maximum height 400mm. With PLC control system, the corrugated fin forming machine can corrugate the plate automatically after presetting according parameters. The corrugated fin forming machine features easy operation.





Quick details of corrugated fin forming machine BWX1300-400

  • Steel coil width 300~1300mm
  • Sheet thickness 0.5~1.75mm
  • Fin width 300~1300mm
  • Fin height 50~400mm



Main parameters of corrugated fin forming machine BWX1300-400



Typical standard specifications of corrugated fin making machine BWX1300-400 are shown below, however, the corrugated fin forming machine can also be manufactured as requested.



Item BWX1300-400
Steel Coil Width: 300~1300mm
Thickness of sheet: 0.5~1.75mm
Fin Width: 300~1300mm
Fin Height: 50~400mm
Distance between fins: >40mm
Fin Gap (oil groove): >4mm
Forming Speed: 3~4 fins/min
Power: 30KW



BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 0

Fig 1: Corrugated fin forming macihne BWX1300-400's side view



BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 1

Fig 2: Corrugated fin forming machine BWX1300-400's decoiler



BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 2

BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 3BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 4

BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 5BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 6BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 7BWX1300-400 Corrugated Fin Forming Machine With Fin Width 300 - 1300mm 8
