| Name: | Transformer Foil Winding Machine | Function: | Making Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 1000mm | Color: | As Per Requirements |
| Winding Motor Power: | 15kw | Winding Speed: | 0 ~ 20rpm |
| High Light: | Automatic Transformer Winding Machine Low Voltage,Automatic Sheet Winding Machine,15kw Foil Coil Winding Machine |
||
Automatic Sheet Winding Machine Low Voltage Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1000-2
Transformer foil winding machine BRJ1000-2 is a special conductor foil winder machine specifically designed for winding dry type transformer coils or similar products. Featuring a maximum winding width of 1,000 mm, the transformer foil winding machine is able to wind one or two layers of both copper foil with thickness between 0.2mm through 2mm and aluminium foil with thickness between 0.3mm through 3mm. Powered by 15KW motor, the transformer foil winding machine can provide enough torque to efficiently wind foil and insulation paper at the same time. The transformer foil winding machine is provided with TIG winding machine and water cooler for welding foil and busbar together. Furthermore, the operator can enjoy its user-friendly experience through the touch screen display control, which guarantees that the machine can be operated easily.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers for placing material foil
2) Two insulation decoilers
3) End-fill strip feeder
4) Cleaning system
5) Foil deburring system
6) Cutting foil system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,000mm |
| Wound Coil Shape: | oval, circle and rectangular,etc. |
| Max Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 1,050mm |
| Foil Decoiler Expanding Range: | Φ420 ~ 520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic |
| Cleaning System: | Pneumatic |
| Insulation Decoiler Number: | 2 pcs |
| Max Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-fill Strip Feeder: | 8 pcs |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |

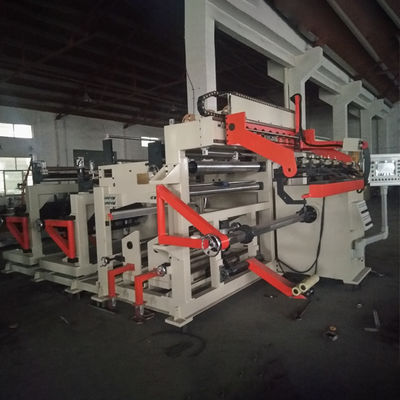

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
