| Name: | Transformer Foil Winding Machine | Usage: | Winding Transformer Coil |
|---|---|---|---|
| Winding Power: | 22kw | Rotating Speed: | 0 ~ 18 Rpm |
| Cu Film Thickness: | 0.2 ~ 2.0mm | Al Film Thickness: | 0.3 ~ 3.0mm |
| Deburring Unit: | 2 Sets | Warranty: | 12 Months |
| High Light: | Cast Resin Transformer Coil Winding Machine,Automatic Transformer Foil Winder,Electronic Transformer Copper Foil Winder |
||
Cast Resin Transformer Foil Winding Machine Copper Foil Winder
Description of transformer foil winding machine BRJ1400-2
Transformer foil winding machine BRJ1400-2 is a professional device for precisely and efficiently winding transformer coils with foil conductors. The transformer foil winding machine can be used to winding both copper and aluminium foil. With two foil decoilers and two insulation decoilers, the transformer foil winding machine can wind one or two layers of foil conductors and wind one or two layers of insulation paper. The transformer foil winding machine is provided with a TIG welding unit, which can be used to weld foil and bus bar together. With PLC control system and HMI, the transformer foil winding machine features slow starting, smooth running and easy operation.
Main components of transformer foil winding machine BRJ1400-2
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical parameters of transformer foil winding machine BRJ1400-2
Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | Φ460 ~ 520mm |
| Max. Coil Weight: | 2,500KG |
| Winding Mandrel Size: | 80×80×1750 mm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 - 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(LxWxH) | 5800x2850x2500mm |

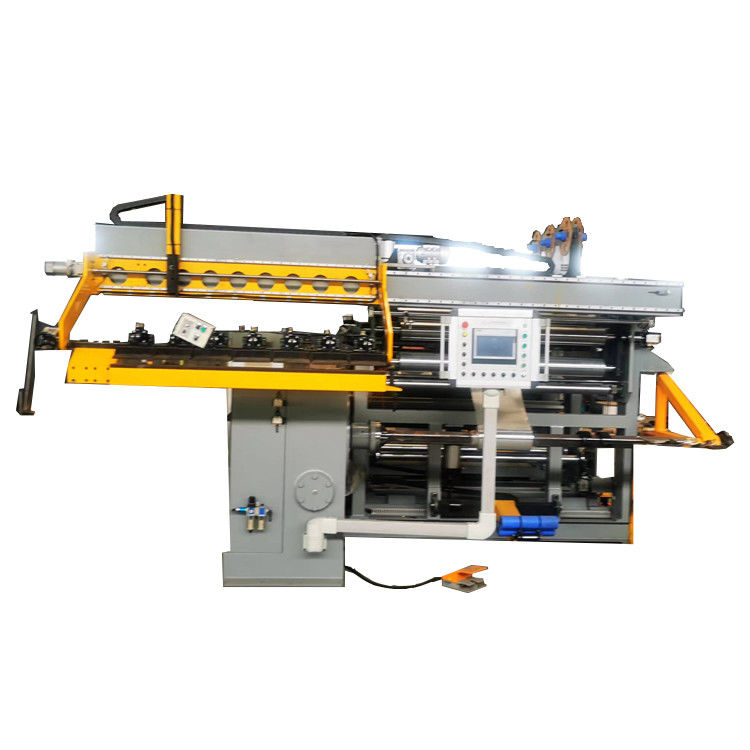

Fig 1: Transformer foil winding machine BRJ1400-2's front view
Fig 2: Transformer foil winding machine BRJ1400-2's back view
