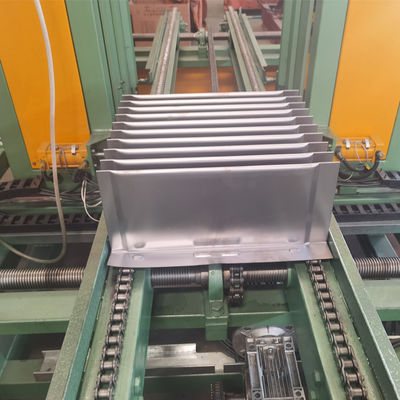

Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min

Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min

Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min
Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min

Large Image :  Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: BWX1300-400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Corrugated Fin Forming Machine Sheet Width: 300 ~ 1300mm
Fin Height: 50 ~ 400mm Fin Pitch: 45 ~ 60mm
Corrugating Speed: 3 ~ 4 Fins/min Machine Color: Customized
Function: Making Corrugated Fins Warranty Period: 12 Months
High Light:

TIG Welding Corrugated Fin Forming Machine

,

Custom Corrugated Fin Forming Machine

,

4 Fins/Min Corrugated Fin Making Machine

Automatic TIG Welding Corrugated Fin Forming Machine



Introduction of corrugated fin forming machine BWX1300-400

Corrugated fin forming machine is a specialized equipment to make corrugated fin. This kind of corrugated fins can be used to make transformer oil tanks and other similar products. The corrugated fin forming machine can corrugate plates with maximum width 1300mm. The corrugated fin forming machine can make the fin with maximum height 400mm. With TIG welding unit, the corrugated fin forming machine can weld the corrugated fin automatically. The corrugated fin forming machine is provided with PLC, which make the corrugated fin forming machine corrugate the plate automatically after presetting according parameters. The corrugated fin forming machine features high automation and easy operation, etc.





Quick details of corrugated fin forming machine BWX1300-400

  • Steel coil width 300~1300mm
  • Sheet thickness 0.5~1.75mm
  • Fin width 300~1300mm
  • Fin height 50~400mm



Main parameters of corrugated fin forming machine BWX1300-400



Typical standard specifications of corrugated fin making machine BWX1300-400 are shown below, however, the corrugated fin forming machine can also be manufactured as requested.

Item BWX1300-400
Steel Coil Width: 300~1300mm
Thickness of sheet: 0.5~1.75mm
Fin Width: 300~1300mm
Fin Height: 50~400mm
Distance between fins: >40mm
Fin Gap (oil groove): >4mm
Forming Speed: 3~4 fins/min
Power: 30KW



Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 0

Fig 1: Corrugated fin forming macihne BWX1300-400's side view



Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 1

Fig 2: Corrugated fin forming machine BWX1300-400's decoiler



Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 2

Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 3Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 4

Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 5Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 6Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 7Automatic TIG Welding Corrugated Fin Forming Machine 3 - 4 Fins/Min 8
