| Product Name: | Transformer Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 1000mm | Color: | As Per Requirements |
| Winding Motor Power: | 15kw | Rotating Speed: | 0 ~ 20rpm |
| High Light: | Automatic Transformer Foil Winding Machine,Dry Transformer Foil Winding Machine,Copper Strip Transformer Foil Winding Machine |
||
Factory Direct Sales Automatic Copper Strip Winding Machine Dry Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1000-2
Transformer foil winding machine BRJ1000-2 is a professional winder. The transformer foil winding machine is mainly used to wind transformer foil coil or similar products. These foil coils can be used to make cast resin transformer and other similar products. The kind of transformer foil winding machine can wind one or two layers of copper foil with maximum width 1000mm. With 15KW winding motor, the transformer foil winding machine can provide enough torque to wind foil and insulation paper. The transformer foil winding machine can weld foil and busbar together with TIG welding machine. With HMI and a touch screen, it is very easy to operate the transformer foil winding machine.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip feeder
4) Cleaning system
5) Foil deburring system
6) Cutting foil system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below, however the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,000mm |
| Max Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Length: | 1,050mm |
| Foil Decoiler Expanding Range: | Ø480 ~ 520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Cutting Mode: | Electric disc shear |
| Foil deburring System: | Pneumatic control |
| Cleaning System: | Pneumatic control |
| Insulation Decoiler Number: | 2 sets |
| Max Insulation Material OD.: | Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Max Insulation Material Width: | 1,050mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Rectification Precision: | ±0.5mm |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 20rpm |
| Counting Turns Range: | 0 ~ 9999.9 |

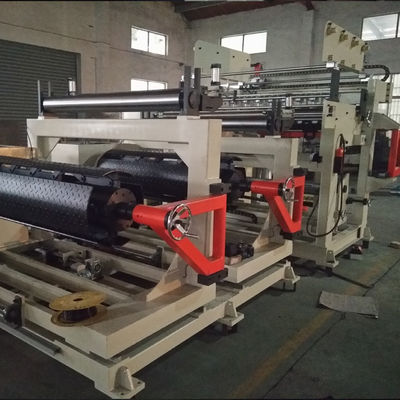

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
