| Machine Name: | Transformer Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 1000mm | Machine Color: | As Per Requirements |
| Winding Motor Power: | 15kw | Winding Speed: | 0 ~ 20rpm |
Automatic Winding Machine Low Voltage Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1000-2
Transformer foil winding machine BRJ1000-2 is a special conductor foil winder. The transformer foil winding machine is mainly used to wind cast resin transformer foil coil or other similar products. These foil coils can be used to in cast resin transformer and other similar products. With two foil decoilers, the kind of transformer foil winding machine can wind one or two layers of copper foil. The transformer foil winding machine is provided with a 15kw winding motor, which can provide enough torque to wind foil and insulation paper together. With one TIG welding unit, the transformer foil winding machine can weld foil and bus bar together. The transformer foil winding machine features slow starting, smooth running, high torque and so on.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip holder
4) Cleaning device
5) Foil deburring device
6) Roll shear
7) Edge alignment device
8) TIG welding unit
Technical parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below and the foil winding machine can also be manufactured as requested.
| Foil Width: | 200 ~ 1,000mm |
| Max Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Expanding Range: | Ø480 ~ 520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Shear: | Electric disc shear |
| Foil Deburring Device: | Pneumatic control |
| Cleaning Device: | Pneumatic control |
| Insulation Decoiler Number: | 2 sets |
| Max Insulation Material OD.: | Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Insulation Decoiler Shaft: | pneumatic open/close action |
| End-fill Strip Holder: | 8 pcs |
| Edge Alignment Device: | Photoelectric sensing |
| Rectification Precision: | ±0.5mm |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |
| Counting Range: | 0 ~ 9999.9 |

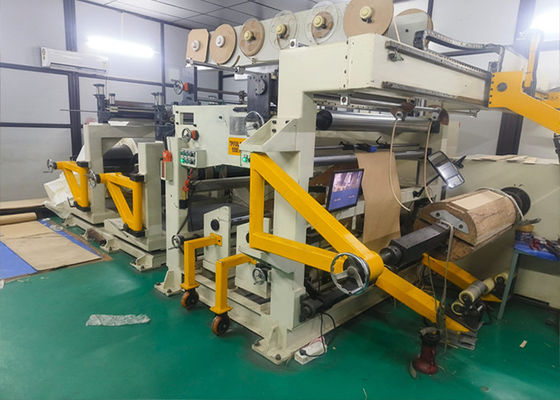

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
