Product Details:
Payment & Shipping Terms:
|
| Prorduct Name: | Transformer Foil Winding Machine | Function: | Winding Film Foil |
|---|---|---|---|
| Winding Power: | 45kw | Winding Speed: | 0 ~ 16 Rpm |
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Deburring Unit: | 4 Sets | Warranty: | 12 Months |
| Highlight: | LV Transformer Foil Winding Machine,Foil Winding Machine,LV transformer winder |
||
LV Transformer Foil Winding Machine Four Foil Decoilers
Description of transformer foil winding machine BRJ1500-4
Transformer foil winding machine BRJ1500-2 is a professional foil sheet winder equipment. The transformer foil winding machine can wind conductor foil to make foil coils. The foil winding machine can wind the foil with maximum width 1500mm. With four foil decoilers, the transformer foil winding machine can wind maximum four layers of foil. The transformer foil winding machine is provided with TIG welding unit and can weld foil and bus bar together. The transformer foil winding machine can be operated easily with PLC and HMI.
Main components of transformer foil winding machine BRJ1500-4
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical parameters of transformer foil winding machine BRJ1500-4
Typical standard specifications of transformer foil winding machine BRJ1500-4 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 1,500mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular |
| Conductor Foil Material: | Copper or Aluminum |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 4 pcs |
| Max. Coil Weight: | 2,500KG |
| Winding Mandrel Size: | 80×80×1750 mm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| Counting Range: | 0 - 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(LxWxH) | 5800x2850x2500mm |

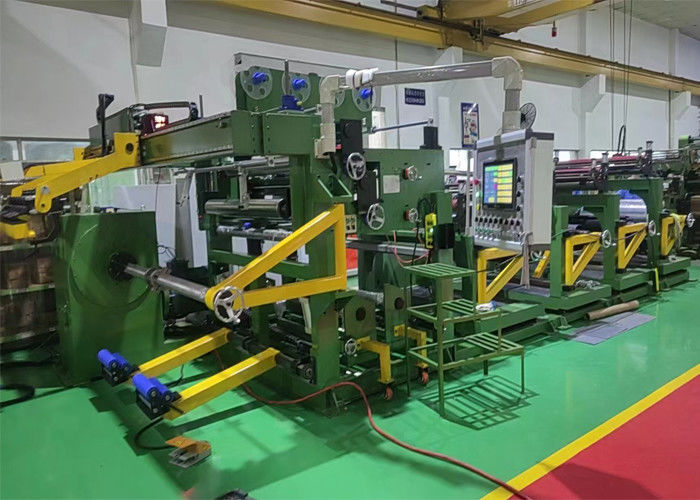

Fig 1: Transformer foil winding machine BRJ1500-4's front view
Fig 2: Transformer foil winding machine BRJ1500-4's back view
