CU 80 rpm Transformer Foil Winding Machine Winding Conductor Foil And Wire
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Coil And Foil Winding Machine | Foil Width: | 150 ~ 400mm |
|---|---|---|---|
| Welding Method: | TIG | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~3.0mm | Winding Speed: | 0 ~ 80 Rpm |
| Winding Power: | 7.5kw | Warranty Operiod: | 12 Months |
| Highlight: | 80 rpm Transformer Foil Winding Machine,Winding Conductor Foil And Wire Machine,CU Transformer Foil Winding Machine |
||
Transformer Foil Winding Machine Winding Conductor Foil And Wire
Introduction of transformer foil winding machine BRJ400-2
Automatic transformer foil winding machine BRJ400-2 is a professional winder equipment, which can wind both foil and wire. With two foil decoilers and two insulation paper decoilers, the winding machine can handle one or two layers of foil and one or two layers of insulation paper. The winding machine can be also used to wind copper or aluminium wire with maximum winding width 400mm. The machine is with two operation interfaces, one is for winding foil coil, another is for winding wire coil. With PLC and HMI, it is very easy to operate the machine.
Technical Parameter of transformer foil winding machine BRJ400-2
Typical standard specifications of coil and foil winding machine BRJ400-2 are shown below and the coil and foil winding machine can also be manufactured as requested.
| For Winding Foil: | |
| Max foil width: | 400mm |
| Max Rotating Diameter: | Ø600mm |
| Coil shape: | oval, round, rectangle |
| Conductor material: | Copper / Aluminum foil |
| Al foil thickness: | 0.3～3.0 mm |
| Cu foil thickness: | 0.2～2.0 mm |
| Foil decoiler: | 2 sets |
| Max foil decoiler capacity: | 750kg |
| Alignment method: | Photoelectric automatic correction |
| Winding power: | 7.5KW |
| Center height: | 1000mm |
| Insulation axis: | 2 sets |
| Layer insulation roll OD: | ≤Ø400mm |
| Layer insulation roll ID: | Ø76mm |
| Countering range: | 0.0~9999.9 |
| Countering precision: | 0.1 circle |
| Function: | Segmented input, reversible, power failure memory, etc. |
| Welding way: | TIG |
| For Winding Wire: | |
| Max. wound coil OD.: | 400mm |
| Maximum Wire Winding Width: | 400mm |
| Round Wire Size: | 0.3~6.0mm |
| Maximum Flat Wire Size: | 4x10mm |
| Maximum Winding Speed: | 80rpm |

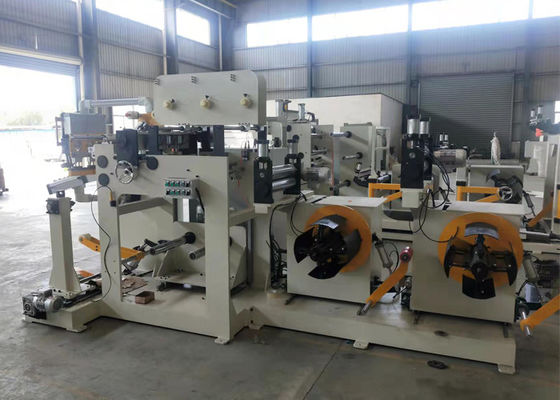

Fig 1: Transformer coil and foil winding machine BRJ400-2's front view
Fig 2: Transformer coil and foil winding machine BRJ400-2's side view
