TIG Automatic Transformer Foil And Coil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Coil And Foil Winding Machine | Foil Width: | 150 ~ 600mm |
|---|---|---|---|
| Welding Mode: | TIG | Cu Foil Thickness: | 0.2 ~ 2.0mm |
| Al Foil Thickness: | 0.3 ~3.0mm | Winding Speed: | 0 ~ 80 Rpm |
| Winding Power: | 15kw | Warranty Operiod: | 12 Months |
| Highlight: | Transformer Foil And Coil Winding Machine,TIG Transformer Foil Winding Machine,TIG Transformer Coil Winder Machine |
||
Automatic Transformer Foil And Coil Winding Machine
Quick details of transformer foil winding machine BRJ600-2
- Maximum foil width 600mm
- Maximum winding width 600mm
- Foil material ID 500mm
- Foil material OD 1000mm
- Winding speed 26rpm
- Winding power 11kw
- Automatic TIG welding
- Two foil decoilers
Description of transformer foil winding machine BRJ600-2
Transformer foil winding machine BRJ600-2 is a professional winder equipment. The transformer foil winding machine can be used to winding conductor foil and wire. The winding machine can wind one or two layers of foil and one or two layers of insulation paper and the winding machine can also wind copper or aluminium wire. With TIG welding unit, the transformer foil winding machine can weld foil and bus bar together. With HMI and PLC, the transformer foil winding machine can be operated easily and intuitively.
Main parameters of transformer foil winding machine BRJ600-2
Typical standard specifications of transformer foil winding machine BRJ600-2 are shown below and the foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 600mm |
| Conductor Foil Material OD.: | Ø1,000mm, maximum |
| Conductor Foil Material ID.: | Ø500mm |
| Number of Conductor Decoiler: | 2 pcs |
| Winding Power: | 15KW |
| Winding Shaft Size: | 80×80×950 mm |
| Max. Winding Speed For Winding Foil: | 35 Rpm |
| Insulation Decoiler: | 2 pcs |
| Insulation Material OD.: | ≤Ø400mm |
| Insulation Material ID.: | Ø76mm |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Counting Turns Range: | 0 ~ 9999.9 |
| Power Supply: | 3-phase 380V 50Hz |

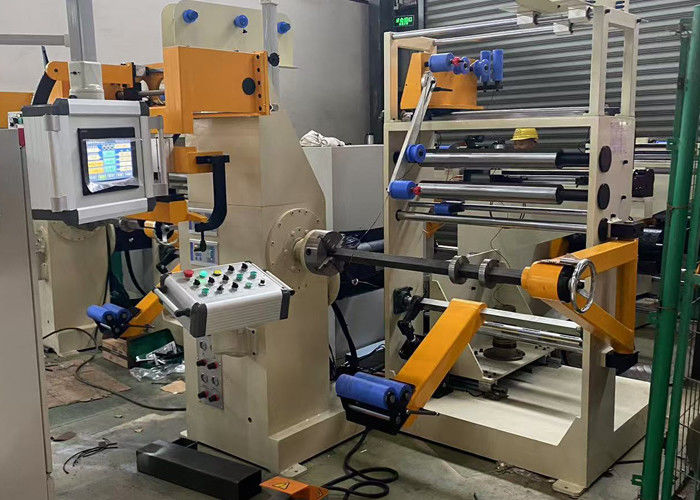

Fig 1: Transformer coil and foil winding machine BRJ600-2's front view
Fig 2: Transformer coil and foil winding machine BRJ600-2's side view
