Copper Foil Winder Low Voltage Transformer Foil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Transformer Foil Winding Machine | Function: | Winding Film Foil |
|---|---|---|---|
| Main Power: | 22kw | Rotating Speed: | 0 ~ 18 Rpm |
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Foil Decoiler: | 2 Sets | Warranty: | 12 Months |
Copper Foil Winder Low Voltage Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1400-2
Transformer foil winding machine BRJ1400-2 is a special foil winding equipment for winding cast resin transformer coil. The transformer foil winding machine can wind both copper foil and aluminium foil. With two foil decoilers and two insulation paper decoilers, the foil winding machine can handle one or two layers of foil and handle one or two layers of insulation paper at once. The transformer foil winding machine is provided with TIG welding unit for welding foil and bus bar together. The control system of the foil winding machine is based on PLC. The transformer foil winding machine features easy operation and so on.
Main components of transformer foil winding machine BRJ1400-2
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical parameters of transformer foil winding machine BRJ1400-2
Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below and the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular |
| Conductor Foil Material: | Copper or Aluminum |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | Φ480 ~ 520mm |
| Max. Coil Weight: | 2,500KG |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| Counting Range: | 0 - 9999.9 |

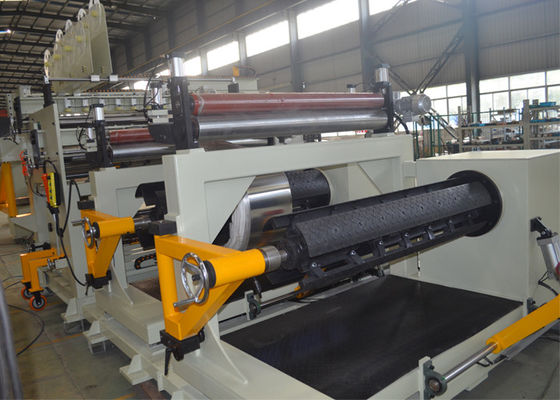

Fig 1: Transformer foil winding machine BRJ1400-2's front view
Fig 2: Transformer foil winding machine BRJ1400-2's back view
