2.2kw Winding Power Automatic HV Coil Winder Transformer Coil Winding Machine For Winding Wire Coil

Automatic HV Coil Winder Transformer Coil Winding Machine

Description of transformer coil winding machine ZPX400

Transformer coil winding machine ZPX400 is a special transformer coil making equipment. The transformer coil winding machine is mainly used to wind copper wire or aluminium wire to make transformer coils or other similar products. With a wire guide driven by a servo motor, this kind of transformer coil winding machine can transverse the wire automatically when winding. The transformer coil winding machine is provided with a touch screen. With HMI, it is very easy to operate the machine.

Quick details of transformer coil winding machine ZPX400

• 2.2kw motor
• Maximum winding speed 200rpm
• PLC control system
• Winding flat or round wire
• pneumatic system
• Foot pedal

Technical Parameters of transformer coil winding machine

Typical standard specifications of transformer coil winding machine ZPX400 are shown below and the machine can also be manufactured as requested.

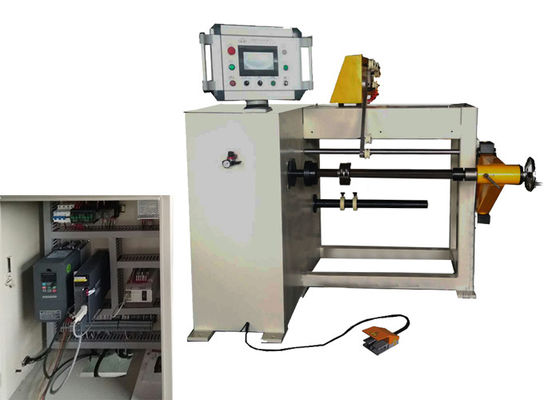

Fig 1: Transformer coil winding machine ZPX400's front view

Fig 2: Transformer coil winding machine ZPX400's motor and its reducer
