Customized Copper Strip Winder Simple Transformer Foil Winding Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Transformer Foil Winding Machine | Usage: | Winding Transformer Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Decoiler Number: | Two Pieces | Decoiler Diameter: | 480 ~ 520mm |
| Winding Power: | 11kw | Machine Color: | Optional |
| Highlight: | Copper Strip Transformer Foil Winder,Customized Copper Strip Winder,Simple Transformer Foil Winding Machine |
||
Customized Cheap Copper Strip Winder Simple Transformer Foil Winding Machine
Description of foil winding machine JJ-BRJ600-2
Foil winding machine JJ-BRJ600-2 is one model of cheap and simple foil winding machines. Even though the foil winding machine is very simple, the foil winding machine can wind one or two layers of copper or aluminium foil with maximum width 600mm. The foil winding machine can also wind one or two layers of insulation paper along with the foil. This foil winding machine can rectify the foil to guarantee the foil alignment manually. The foot pedal of the foil winding machine can stop / start the machine and switch the rotating direction. The foil winding machine features slow starting, smooth running, easy operation, and so on.
Main components of foil winding machine JJ-BRJ600-2
1.Main frame
2.Foil decoilers
3.Winding unit
4.Insulation decoilers
5.Pneumatic devices,
6.Electrical control system
7.Rectifying system
Technical Parameters of foil winding machine JJ-BRJ600-2
Typical standard specifications of JJ-BRJ600-2 are shown below, however this can be easily modified as requested.
|
Cu or Al Foil Width: |
600 mm |
|
Max. Finished Coil Diameter: |
Ø800 mm |
|
Finished Coil Shape: |
rectangular, oval and circle |
|
Foil Material: |
Copper or Aluminum foil |
|
Al Foil Thickness: |
0.3 ~ 3.0 mm |
|
Cu Foil Thickness: |
0.2 ~ 2.0 mm |
|
Conductor Material OD.: |
Ø1000 mm |
|
Conductor Material ID.: |
Ø500 mm |
|
Foil Decoiler Number: |
2 pcs |
|
Foil Decoiler Diameter: |
adjustable range Ø480-520 mm |
|
Loading Capacity of Decoiler: |
800 kg |
|
Motor Power: |
11kw |
|
Rotating Speed: |
0 - 26 rpm |
|
Insulation Decoiler Number: |
2 pcs |
|
Insulation Material OD.: |
≤ Ø400 mm |
|
Insulation Material ID.: |
Ø76 mm |
|
Insulation Material Width: |
650 mm |
|
Insulation Decoiler: |
Pneumatic expandable |
|
Rectifying: |
Mechanical |
|
Counting Turn Range: |
0 - 9999.9 |
Fig 1: Transformer foil winding machine JJ-BRJ600-2's full view

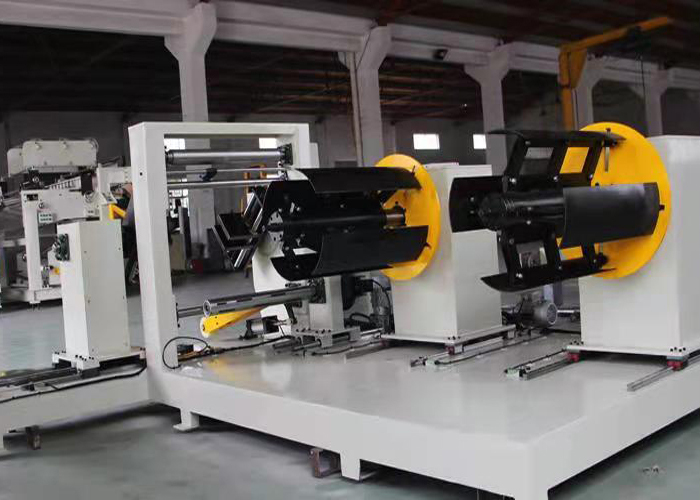

Fig 2: Transformer foil winding machine JJ-BRJ600-2's foil decoiler
